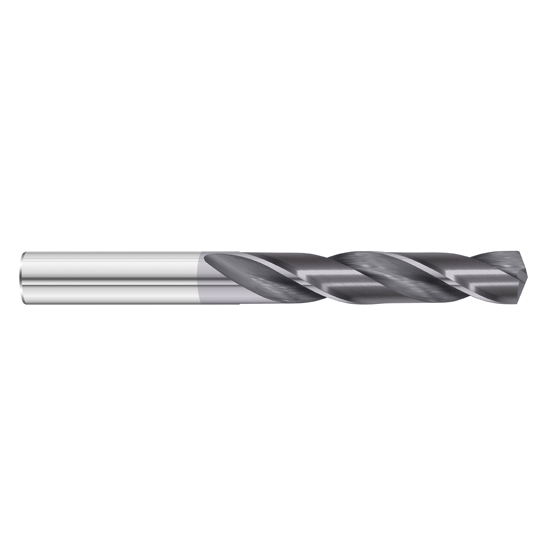

Fullerton Tool 13003 | 1/32" Solid Carbide TiAlN Jobbers Length Drill

$28.85 $18.18
(You save $10.67)
Ships:
From Partner Facility
Brand:
Fullerton Tool
Drill Bit Size (Inch):
1/32"
Drill Bit Size (Decimal Inch):
0.0312"
Drill Bit Size (mm):
0.79mm
Drill Point Angle:
135°
Material:
Solid Carbide
Finish/Coating:
TiAlN
Flute Type:
Spiral
Cutting Direction:
Right Hand
Shank Type:
Straight
Through Coolant:
Non Through Coolant
Ships:
From Partner Facility
SKU:
10000945
UPC:
Weight:
0.08 LBS
Shipping:
Calculated at Checkout

Features

  • The 1500 Notched Cam Point is a 2-flute, general purpose drill designed to withstand a variety of materials, including titanium, hardened steels, stainless steels, cast iron, and brass & copper
  • Its robust notched cam point and 30 Degree spiral allows for higher feed rates and increased tool life
  • The 1500 Notched Cam Point is stocked uncoated, and with FC-7 and TiAlN coating

Product Specifications
Cutting Diameter (Decimal Inch) 0.0312"
Cutting Diameter (mm) 0.79mm
Cutting Diameter (Inch) 1/32"
Cutting Flute Length (Decimal Inch) 0.3125"
Cutting Flute Length (mm) 7.94mm
Cutting Flute Length (Inch) 5/16"
Shank Diameter (Decimal Inch) 0.0312"
Shank Diameter (mm) 0.79mm
Shank Diameter (Inch) 1/32"
Overall Length (Decimal Inch) 1.2500"
Overall Length (mm) 31.75mm
Overall Length (Inch) 1-1/4"
Coating/Finish TIALN
Metric/Inch Inch
Number of Flutes 2
Helix Angle (Degrees) 30
Flute Spiral Direction Right Hand
Direction of Cut Right Hand
Point End Type Notched
End Type Character Designation N
Point Include Angle 135
End Type Single End
Coolant Through Non Coolant Through
Weldon Flat No
Length Standard
Length Designator 7xD
