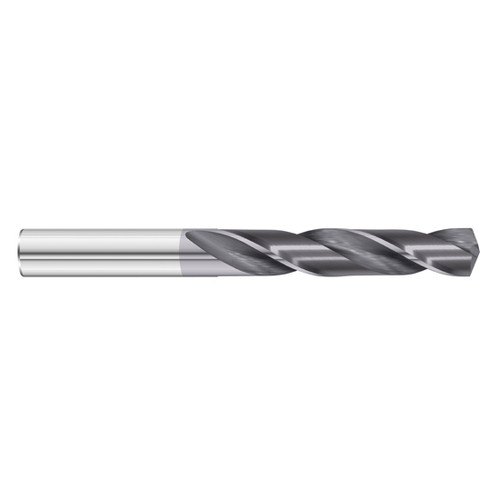

Fullerton Tool 13023 | #52 Solid Carbide TiAlN Jobbers Length Drill

$24.98 $15.74
(You save $9.24)
Ships:
From Partner Facility
Brand:
Fullerton Tool
Drill Bit Size (Decimal Inch):
0.0635"
Drill Bit Size (mm):
1.61mm
Drill Bit Size (Wire):
#52
Drill Point Angle:
135°
Material:
Solid Carbide
Finish/Coating:
TiAlN
Flute Type:
Spiral
Cutting Direction:
Right Hand
Shank Type:
Straight
Through Coolant:
Non Through Coolant
Ships:
From Partner Facility
SKU:
10000865
UPC:
Weight:
0.08 LBS
Shipping:
Calculated at Checkout

Features

  • The 1500 Notched Cam Point is a 2-flute, general purpose drill designed to withstand a variety of materials, including titanium, hardened steels, stainless steels, cast iron, and brass & copper
  • Its robust notched cam point and 30 Degree spiral allows for higher feed rates and increased tool life
  • The 1500 Notched Cam Point is stocked uncoated, and with FC-7 and TiAlN coating

Product Specifications
Cutting Diameter (Decimal Inch) 0.0635"
Cutting Diameter (mm) 1.61mm
Diameter (Wire) 52
Cutting Flute Length (Decimal Inch) 0.7500"
Cutting Flute Length (mm) 19.05mm
Cutting Flute Length (Inch) 3/4"
Shank Diameter (Decimal Inch) 0.0635"
Shank Diameter (mm) 1.61mm
Overall Length (Decimal Inch) 1.5000"
Overall Length (mm) 38.10mm
Overall Length (Inch) 1-1/2"
Coating/Finish TIALN
Metric/Inch Inch
Number of Flutes 2
Helix Angle (Degrees) 30
Flute Spiral Direction Right Hand
Direction of Cut Right Hand
Point End Type Notched
End Type Character Designation N
Point Include Angle 135
End Type Single End
Coolant Through Non Coolant Through
Weldon Flat No
Length Standard
Length Designator 7xD
