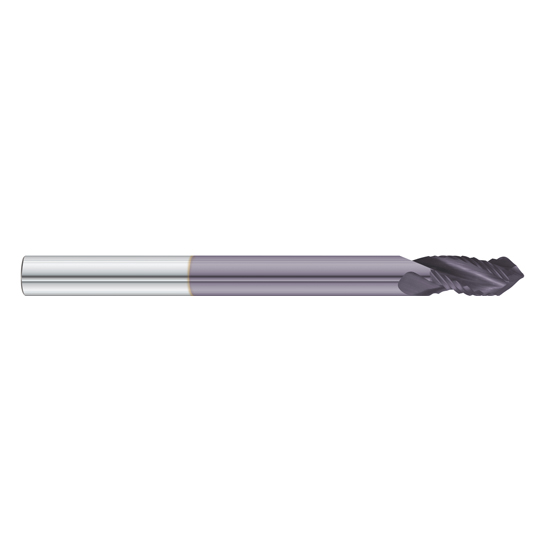

Fullerton Tool 15668 | 9mm Solid Carbide TiAlN Jobbers Length Drill

$218.33 $137.55
(You save $80.78)
Ships:
From Partner Facility
Brand:
Fullerton Tool
Drill Bit Size (Decimal Inch):
0.3543"
Drill Bit Size (mm):
9mm
Drill Point Angle:
90°
Material:
Solid Carbide
Finish/Coating:
TiAlN
Flute Type:
Parabolic
Cutting Direction:
Right Hand
Shank Type:
Straight
Through Coolant:
Non Through Coolant
Ships:
From Partner Facility
SKU:
10001636
UPC:
Weight:
0.08 LBS
Shipping:
Free Shipping

Features

  • The 1566 Poly Drill is a high performance drill with 3-flutes designed for burr-free drilling of graphite, composites, and plastics
  • It produces clean, burr-free holes without breakout, eliminating the need for sanding or deburring
  • Its 3-flute design allows for ultimate material removal rates and burr teeth provide a clean shearing of fibers
  • The 1566 Poly Drill is stocked with TiAlN coating

Product Specifications
Cutting Diameter (Decimal Inch) 0.3543"
Cutting Diameter (mm) 9.00mm
Cutting Flute Length (Decimal Inch) 1.4961"
Cutting Flute Length (mm) 38.00mm
Shank Diameter (Decimal Inch) 0.3543"
Shank Diameter (mm) 9.00mm
Overall Length (Decimal Inch) 4.9213"
Overall Length (mm) 125.00mm
Coating/Finish TIALN
Metric/Inch Metric
Number of Flutes 3
Helix Angle (Degrees) 30
Flute Spiral Direction Right Hand
Direction of Cut Right Hand
Point End Type Notched
End Type Character Designation N
Point Include Angle 90
End Type Single End
Coolant Through Non Coolant Through
Weldon Flat No
Length Standard
Length Designator 5xD
