Gar Electroforming is the largest and longest established electroforming service center in the U.S. Through their years of experience in manufacturing, design, and development of electroforming processes and products they have created a unique lineup that have become the standard in their respective categories. They are cheifly known for their microfinish comparators that help to verify surface roughness in the manufacturing process. Their microfinish comparators are second to none in the industry. You can view their lineup here.

About the S-22

Twenty-two replicated machined surface finish specimens with examples of six different machining processes: lapped, ground, blanchard ground, shape-turned, milled and profiled- ranging from 2 to 500 microinches.

The S-22 MICROFINISH COMPARATOR Surface Roughness Scale is made by a dual electroforming process wherein nickel is electrodeposited to provide an exact reproduction in intricate detail. The same electroforming process used to produce the Surface Roughness Scale is available from GAR Electroforming to serve your products needs.

The surfaces used in this scale are reproductions of accurately machined surfaces measured in microinches (millions of an inch - 0.000001"). The numbers engraved alongside each surface are the average deviation from the mean surface expressed in microinches.

Place the MICROFINISH COMPARATOR Surface Roughness Scale alongside your work piece. Slide the scale so that the rectangle with the surface roughness you want is adjacent to the piece you are examining. Compare by drawing the tip of the fingernail across each surface at right angles to the tool mark. The feel of the fingernail contact must be the same if the finishes are identical.

The S-22 MICROFINISH COMPARATOR Surface Roughness Scale provides industry with established flat surface roughness specimens for visual and tactual comparison. It is used in specifying and controlling surface roughness when a product having the appearance of typically machined surfaces is required.

The S-22 MICROFINISH COMPARATOR Surface Roughness Scale provides an economical tool which permits roughness to be specified on the same basis as linear measurements. The surfaces presented are the result of years of research and engineering. Details covering this subject are now published in The American National Standards Institute (ANSI) specification titled: "Surface Texture, Surface Roughness, Waviness and Lay." ANSI/ASME B46.1

Features

Pocket size gage with 22 precision surfaces for specifying and controlling surface finishes. The surfaces used in this scale are reproductions of accurately machined surfaces measured in microinches (millions of an inch - 0.000001").
The numbers engraved alongside each surface are the average deviation from the mean surface expressed in microinches. There are twenty two replicated machined surface finish specimens with examples of six different machining processes: lapped, ground, blanchard ground, shape-turned, milled and profiled - ranging from 2 to 500 microinches.

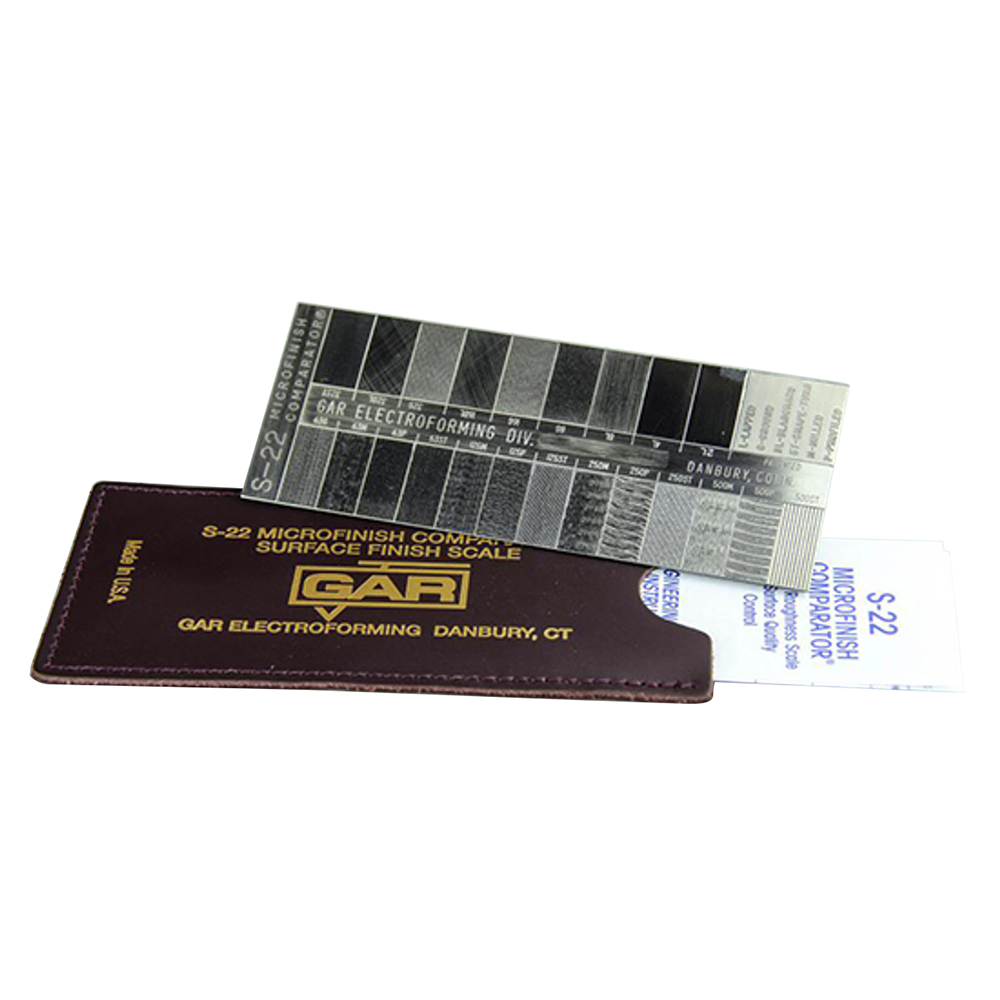

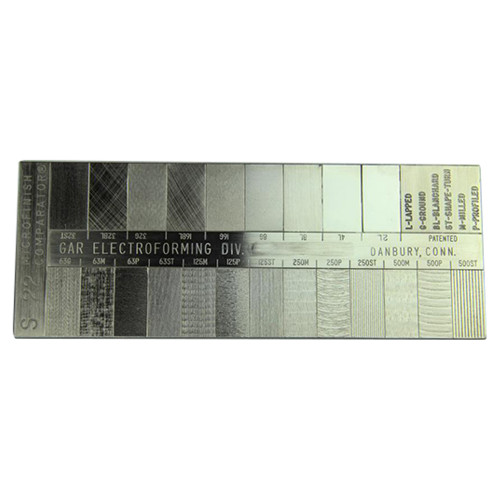

The S-22 conventional machining microfinish comparator is rectangular in shape (2" x 5 3/8") and is a corrosion resistant electroformed nickel duplicate of actual machined surfaces.
Supplied in a leatherette case with engineering data and instructions
Made in USA.
