Kurt D688 | 6" Machine Vise $495 Sale - FREE SHIPPING

No longer available. Please see Kurt DX6 Vise.

SKU:
50000038
Weight:
78.00 LBS
Shipping:
Free Shipping
Kurt D688 | 6" Machine Vise $495 Sale - FREE SHIPPING

Features

  • FREE SHIPPING within continental U.S.
  • We are a full line Kurt distributor and ship same day! Contact us for guaranteed best pricing with all CNC tooling packages (combine with tooling and save big!)
  • Buy from us, register with Kurt, and take advantage of their lifetime warranty
  • Repeatability within 0.001"!
  • Extended 8.8" jaw opening!
  • Outside rail edges of the body are machined
  • Vise nut does not extend beyond the end of the vise body
  • D688 has the same footprint as the D675 vise. Distance from keyway to stationary same as D675
  • Groove Lock jaw (D60-315) and workstop (WSRL46) standard
  • Patented “O” ring pull down feature standard
  • Approximately a 20% increase in clamping pressure over D675 vise
  • Distinctive patented design of the“Kurt Look”
  • Patented AngLock design
  • Bed height matched to size 2.875"(73.025 mm) ±0.0005"
  • Sealed needle thrust bearing used at hex end of screw to reduce clamping friction"
  • Contact us for custom quotes, quantity discounts, or international shipping options. We pride ourselves on the best service, fastest shipping, and lowest pricing in the industry!
  • Ships from USA- same day if ordered before 7:30PM EST
  • We also sell custom tooling packages!
  • New machine or tooling up for a big job?
  • Contact us for best pricing guarantee!
  • 100% Satisfaction Guaranteed!



Product Specifications
Weight 81 lbs
Brand Kurt
Model # D688
Style Plain Base
Jaw Width 6"
Jaw Opening 8.8"
Length 16.81"
Jaw Depth 1.735"
Vise Height 4-3/8"
Width 8-3/4"
Wheel Diameter 8-3/4"
Country of Origin  USA

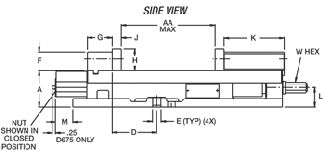

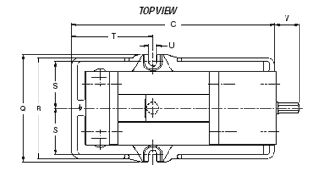

Kurt D688 Vise Dimensions

Data
Data
Data
Data
  Inch Pounds
A 2.875 x
B 6.000 x
C 16.810 x
D 3.562 x
E 0.688 x
F 1.485 x
G 1.980 x
H 1.735 x
J 0.725 x
K 4.800 x
L 1.540 x
N 0.940 x
O 3.875 x
P 1/2-13 x
Q 8.750 x
R 8.250 x
S 3.813 x
T 5.667 x
U 0.656 x
V 1.930 x
W 0.750 x

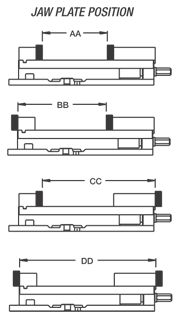

AA 8.8 x
AA MIN 0 x
BB 11.500 x
BB MIN 2.700 x
CC 14.320 x
CC MIN 5.600 x
DD 17.030 x
DD MIN 6.800 x
  • Needle bearing increases jaw clamping pressure.
  • Multi-directional alignment means the movable jaw and workpiece won't tilt while you work.
