Features
- Manufacturer Part # 10042
- Weight: 1.12 lbs

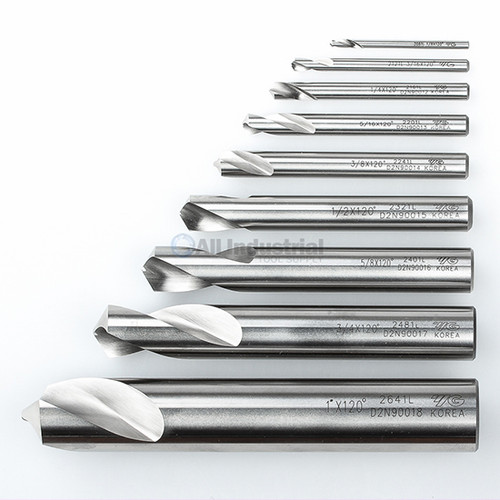

- 9 Pc. set Includes YG1 cobalt NC spotting drills in 1/8, 3/16, 1/4, 5/16, 3/8, 1/2, 5/8, 3/4 & 1" with a 120 Degree angle
- Dimensions: 1/8" diameter (D1), 0.472" flute length (L1) and 1.93" overall length (L2); 3/16" diameter (D1), 0.590" flute length (L1) and 2.44" overall length (L2); 1/4" diameter (D1), 0.669" flute length (L1) and 2.76" overall length (L2); 5/16
- Application: For more precise centering work on NC/CNC machines. A larger diameter in respect to the subsequent drilling tool permit to obtain the centering and chamfering simultaneously
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
YG1
Drill Point Angle:
120 Degree
System of Measurement:
Inch
Number of Pieces:
9
Ships:
From Partner Facility
IsDiscontinued:
