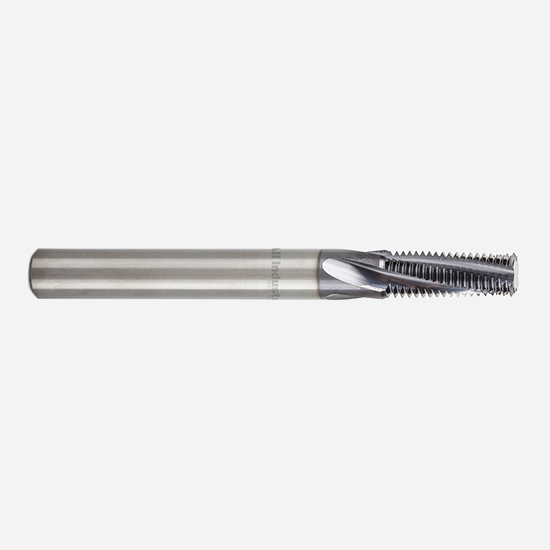

YG1 TE500 | 3/8-24 Helical Flute Solid Carbide Thread Mill 60 Degree TiAlN Coated

$212.23 $152.81
(You save $59.42)
Ships:
From Partner Facility
Brand:
YG1
Threads Per Inch:
24
Material:
Solid Carbide
Shank Diameter (Decimal Inch):
0.3120"
Number of Flutes:
4
Cutter Diameter (Decimal Inch):
0.2850"
Length of Cut (Decimal Inch):
0.7500"
Finish/Coating:
TiAlN
Through Coolant:
No
Ships:
From Partner Facility
SKU:
15000312
UPC:
650229429283
Weight:
0.13 LBS
Shipping:
Free Shipping
YG1 TE500 | 3/8-24 Helical Flute Solid Carbide Thread Mill 60 Degree TiAlN Coated

Features

  • Manufacturer Part # TE500
  • Weight: 0.13 lbs
  • Solid carbide thread mills with 60 Degree helical flute, TiAlN coated for unified internal threads - ANSI B 1.1
  • Plain straight shank and 15 Degree spiral angle
  • Specifications: size: 3/8-24, pitch: 24 TPI, cutter diameter: 0.285", shank diameter: 0.312", length of cut: 0.75", overall length: 3", flutes: 4
  • TiAlN coated for improved performance and tool life in harder materials or high temperature applications

Warning:

This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.

For more information, visit www.P65Warnings.ca.gov

Brand:
YG1
Threads Per Inch:
24
Material:
Solid Carbide
Shank Diameter (Decimal Inch):
0.3120"
Number of Flutes:
4
Cutter Diameter (Decimal Inch):
0.2850"
Length of Cut (Decimal Inch):
0.7500"
Finish/Coating:
TiAlN
Through Coolant:
No
Ships:
From Partner Facility
