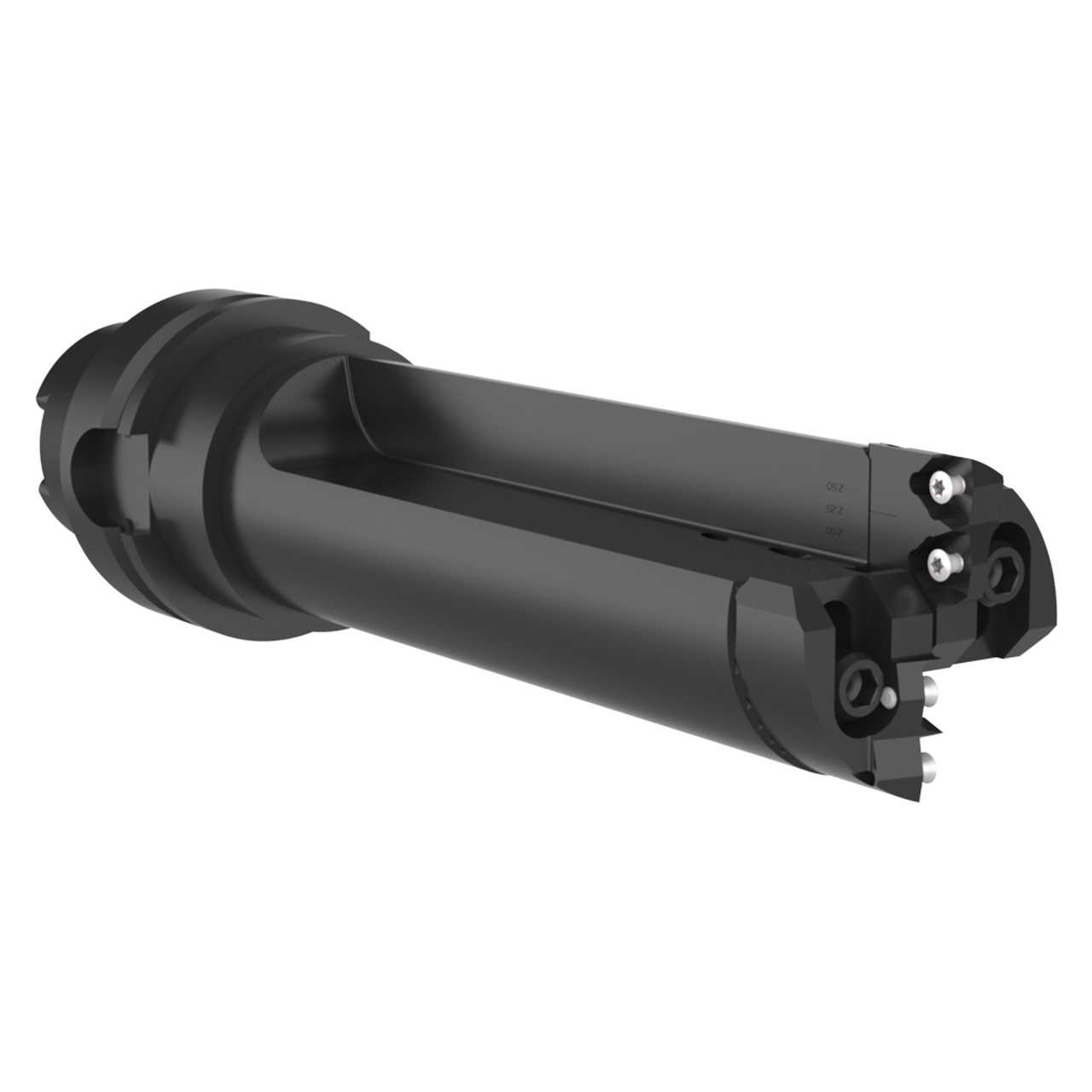

The Opening Drill is an extremely effective tool designed to enlarge existing holes.
Features:
- Cartridges can be easily replaced to protect the drill body investment
- Replaceable cartridges mean less downtime in the event of a tool crash
- Cartridges use the same insert in all pockets lowering inventory levels
- Note: Non-stocked items are NON-RETURNABLE
Product Specifications
| # MFG | OP1-1L-HSK63 |
| Drill Depth (Inch) | 5-17/32" |
| Drill Depth (Inch) | 16.18" |
| Gage Length (Inch) | 8-11/64" |
| Maximum Diameter (Inch) | 2.500" |
| Minimum Diameter (Inch) | 2.000" |
| Quantity of Inserts | 4 |
| Shank Type | HSK 63 |
| Flute Type | Straight |
| Length Type | Long |
| Series | OP1 |
| Insert Prefix | OP-05T308 |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Allied Machine and Engineering
Drill Diameter (Inch):
2"
Drill Diameter (Decimal Inch):
2.0000"
Drill Diameter (mm):
50.80mm
Maximum Drill Depth (Inch):
5-17/32"
Maximum Drill Depth (Decimal Inch):
5.5300"
Maximum Drill Depth (mm):
140.49mm
Shank Type:
HSK 63
Through Coolant:
Yes
interval quantity:
1
