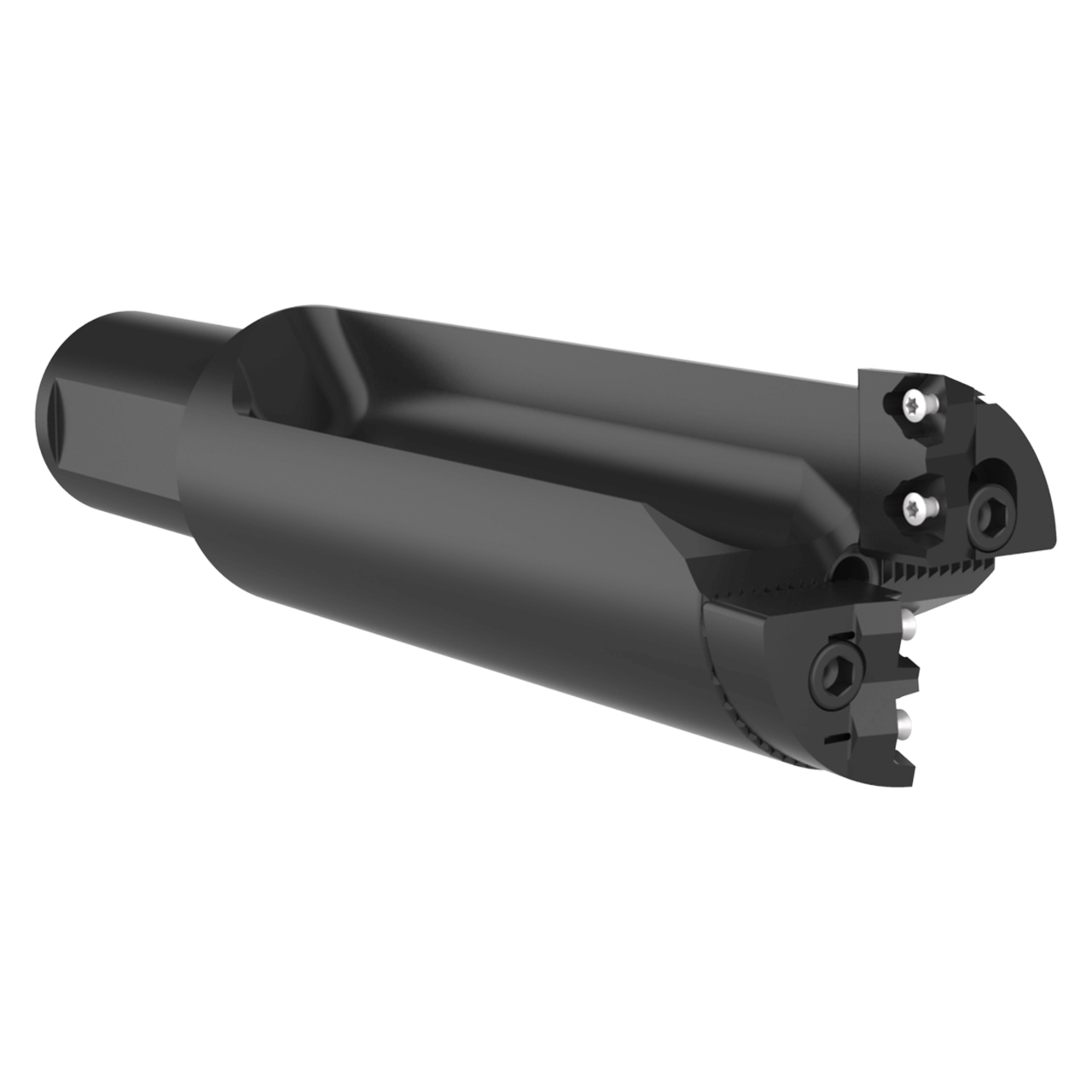

Allied Machine and Engineering SP38X22-40M | 136.50mm Depth x 61.00mm Diameter x 40.00mm Shank x 2.2XD Length R38 Series Indexable Insert Drill

$1,015.00 $964.25
(You save $50.75)
Brand:
Allied Machine and Engineering
Drill Style:
R38
Drill Diameter (Inch):
2-13/32"
Drill Diameter (Decimal Inch):
2.4000"
Drill Diameter (mm):
61.00mm
Maximum Drill Depth (Inch):
5-3/8"
Maximum Drill Depth (Decimal Inch):
5.3740"
Maximum Drill Depth (mm):
136.50mm
Shank Type:
Straight
Through Coolant:
Yes
Drill Depth by Diameter Ratio:
2.2 X D
interval quantity:
1
SKU:
23036833
UPC:
Weight:
5.46 LBS
Minimum Purchase:
1 unit
Shipping:
Free Shipping

The Revolution Drill has an innovative design that allows for adjustability of 0.200" (5.1mm) on diameter, eliminating the need for specials and/or subsequent boring operations.

Features:

  • Drills from solid-no pilot required
  • Adjustable up to 0.200" (5mm) on diameter
  • Replaceable cartridges provide re-buildable function

Product Specifications
# MFGSP38X22-40M
Drill depth (mm)136.50mm
Maximum Diameter (mm)61mm
Minimum Diameter (mm)55.9mm
Shank Diameter (mm)40.00mm
Length Type2.2 X D
Overall Length (mm)230mm
SeriesR38
Quantity of Inserts4
CoolantYes
Flute TypeStraight
Shank typeStraight

Warning:

This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.

For more information, visit www.P65Warnings.ca.gov

Brand:
Allied Machine and Engineering
Drill Style:
R38
Drill Diameter (Inch):
2-13/32"
Drill Diameter (Decimal Inch):
2.4000"
Drill Diameter (mm):
61.00mm
Maximum Drill Depth (Inch):
5-3/8"
Maximum Drill Depth (Decimal Inch):
5.3740"
Maximum Drill Depth (mm):
136.50mm
Shank Type:
Straight
Through Coolant:
Yes
Drill Depth by Diameter Ratio:
2.2 X D
interval quantity:
1
