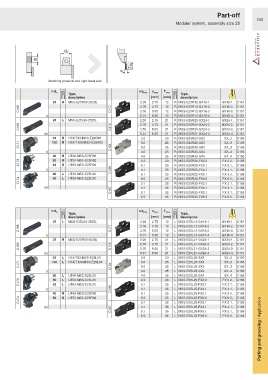

Page 671 - Ceratizit Catalog

Part-off
C66
Modular system, assembly size 25

d A

T max
s

Matching products see right-hand side.

L R L R
h/d A s/s min s max T max
Type, Type,
description [mm] [mm] description
25 R MSS-E25R00-2525L 2.00 2.75 12 R MSS-E25R12-GX16-1 GX16-1.. C151
C168 C177 2.76 3.75 12 R MSS-E25R12-GX16-2 GX16-2.. C151
GX16-3.. C151
3.76
12
5.00
R MSS-E25R12-GX16-3
0 5.01 6.50 12 R MSS-E25R12-GX16-4 GX16-4.. C151
25 L MSS-E25L90-2525L 2.00 2.75 21 R MSS-E25R21-GX24-1 GX24-1.. C151
C169 C178 2.76 3.75 21 R MSS-E25R21-GX24-2 GX24-2.. C151
3.76
R MSS-E25R21-GX24-3
5.00
21
GX24-3.. C151
90 5.01 6.50 21 R MSS-E25R21-GX24-4 GX24-4.. C151
63 R HSK-T63-MSS-E25R00 2.0 20 R MSS-E25R20-SX2 SX..2 C156
C171 100 R HSK-T100-MSS-E25R00 C184 3.0 25 R MSS-E25R25-SX3 SX..3 C156

SX..3
35
3.0
C156
R MSS-E25R35-SX3
0 4.0 25 R MSS-E25R25-SX4 SX..4 C156
40 R UT40-MSS-E25R00 4.0 35 R MSS-E25R35-SX4 SX..4 C156
C173 50 R UT50-MSS-E25R00 2.2 20 R MSS-E25R20-FX2.2 FX 2.2.. C158
UT63-MSS-E25R00
R
63
3.1
R MSS-E25R25-FX3.1
C158
FX 3.1..
25
0 C186 4.1 25 R MSS-E25R25-FX4.1 FX 4.1.. C158
40 L UT40-MSS-E25L90 5.1 25 R MSS-E25R25-FX5.1 FX 5.1.. C158
C174 50 L UT50-MSS-E25L90 6.5 25 R MSS-E25R25-FX6.5 FX 6.5.. C158

C158
FX 3.1..
3.1
35
R MSS-E25R35-FX3.1
90 4.1 35 R MSS-E25R35-FX4.1 FX 4.1.. C158
C187 5.1 35 R MSS-E25R35-FX5.1 FX 5.1.. C158
6.5 35 R MSS-E25R35-FX6.5 FX 6.5.. C158
L R L R
h/d A s/s min s max T max
Type, Type,
description [mm] [mm] description
25 L MSS-E25L00-2525L 2.00 2.75 12 L MSS-E25L12-GX16-1 GX16-1.. C151
C168 C177 2.76 3.75 12 L MSS-E25L12-GX16-2 GX16-2.. C151
5.00
12
GX16-3.. C151
3.76
L MSS-E25L12-GX16-3
0 5.01 6.50 12 L MSS-E25L12-GX16-4 GX16-4.. C151
25 R MSS-E25R90-2525L 2.00 2.75 21 L MSS-E25L21-GX24-1 GX24-1.. C151
C169 C178 2.76 3.75 21 L MSS-E25L21-GX24-2 GX24-2.. C151
L MSS-E25L21-GX24-3
21
3.76
GX24-3.. C151
5.00
90 5.01 6.50 21 L MSS-E25L21-GX24-4 GX24-4.. C151
63 L HSK-T63-MSS-E25L00 2.0 20 L MSS-E25L20-SX2 SX..2 C156
C171 100 L HSK-T100-MSS-E25L00 C184 3.0 25 L MSS-E25L25-SX3 SX..3 C156
3.0
SX..3

C156
L MSS-E25L35-SX3
35
0 4.0 25 L MSS-E25L25-SX4 SX..4 C156
40 L UT40-MSS-E25L00 4.0 35 L MSS-E25L35-SX4 SX..4 C156
C173 50 L UT50-MSS-E25L00 2.2 20 L MSS-E25L20-FX2.2 FX 2.2.. C158
FX 3.1..
3.1
L
UT63-MSS-E25L00
C158
L MSS-E25L25-FX3.1
63
25
0 C186 4.1 25 L MSS-E25L25-FX4.1 FX 4.1.. C158
40 R UT40-MSS-E25R90 5.1 25 L MSS-E25L25-FX5.1 FX 5.1.. C158
C174 50 R UT50-MSS-E25R90 6.5 25 L MSS-E25L25-FX6.5 FX 6.5.. C158
Parting and grooving / Application

C158
35
3.1
FX 3.1..
L MSS-E25L35-FX3.1

C187 5.1 35 L MSS-E25L35-FX5.1 FX 5.1.. C158
90 4.1 35 L MSS-E25L35-FX4.1 FX 4.1.. C158
6.5 35 L MSS-E25L35-FX6.5 FX 6.5.. C158
