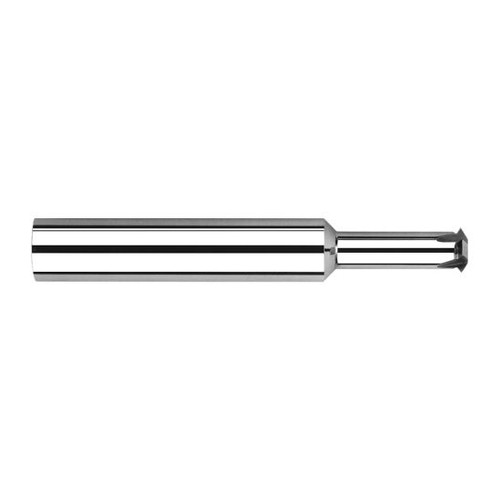

Harvey Tool 54245 | 12 Thread 0.1600" Diameter 4FL 60 Degree Incuded Angle Uncoated Coated Carbide Single Profile Thread Mill

$95.00
Ships:
From Partner Facility
Brand:
Harvey Tool
Thread Size (Inch):
12
Cutter Diameter (Decimal Inch):
0.1600"
Max Depth of Thread (Inch):
7/8"
Max Depth of Thread (Decimal Inch):
0.8750"
Number of Flutes:
4
Material:
Carbide
Finish/Coating:
Uncoated
Shank Diameter (Inch):
1/4"
Shank Diameter (Decimal Inch):
0.2500"
Overall Length (Inch):
2-1/2"
Ships:
From Partner Facility
SKU:
25120299
UPC:
Weight:
0.06 LBS
Shipping:
Free Shipping
Features
  • Single thread form - can mill any pitch
  • Cuts internal and external 60 Degree UN threads
  • Mills right hand and left hand threads
  • Tip of included angle ground to a point
  • Solid carbide
  • CNC ground in the USA
Product Specifications
Size 12
Milling Diameter (Decimal Inch) 0.1600"
Max Depth of Thread (Inch) 7/8"
Max Depth of Thread (Decimal Inch) 0.8750"
Number of Flutes 4
Finish/Coating Uncoated
Included Angle 60 Degree
Shank Diameter (Inch) 1/4"
Shank Diameter (Decimal Inch) 0.2500"
Overall Length (Inch) 2-1/2"
Overall Length (Decimal Inch) 2.5000"
Neck Diameter (Decimal Inch) 0.0950"
Length of Cut (Decimal Inch) 0.0380"
