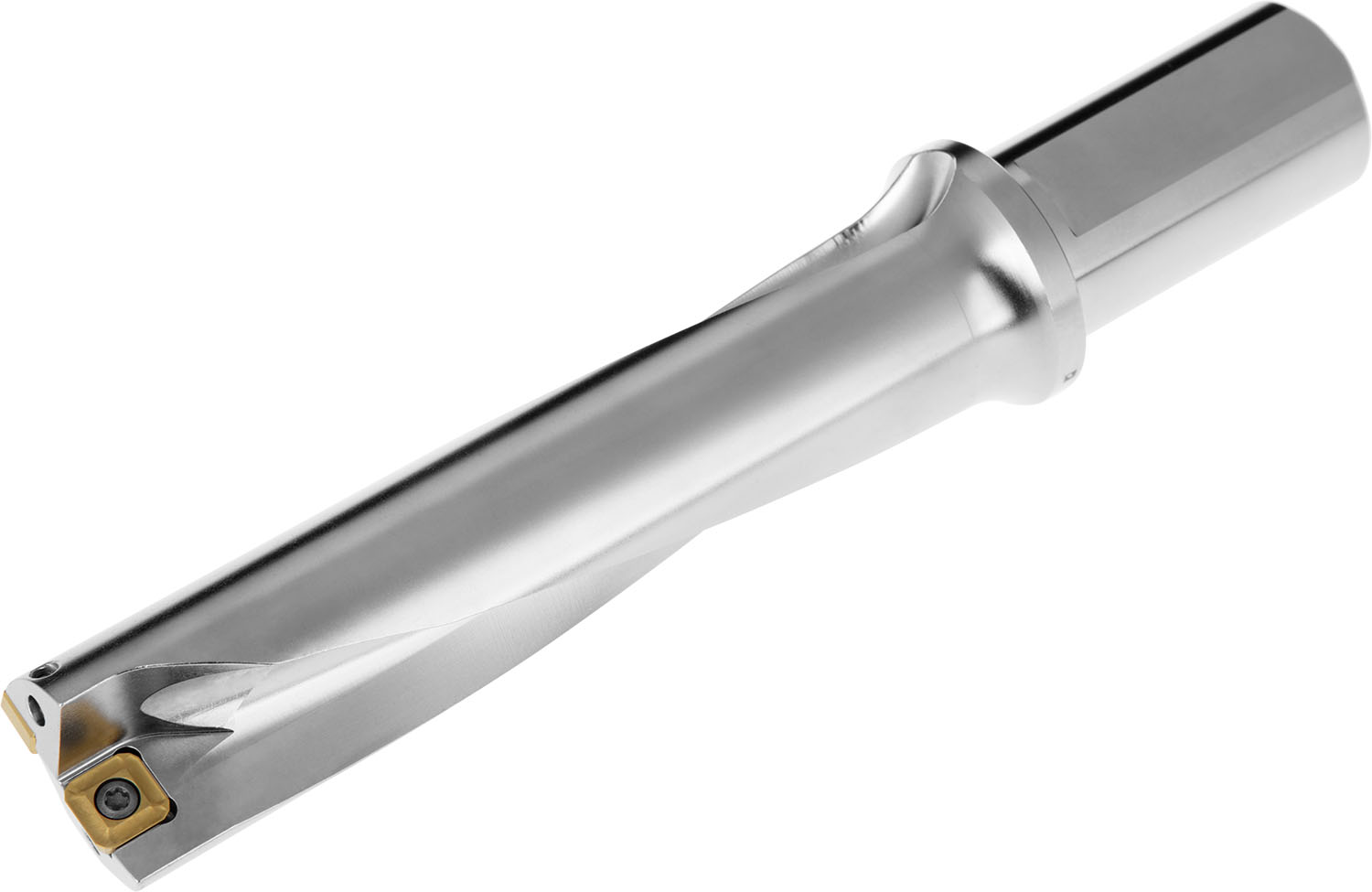

Pramet 804D-34-136-S32 | 1.339" Diameter x 136 mm Max Depth of Cut Indexable Insert Drill

$600.80
Ships:
From Partner Facility
Ships:
From Partner Facility
interval quantity:
1
SKU:
23145017
Weight:
34.92 LBS
Minimum Purchase:
1 unit
Shipping:
Free Shipping
Indexable insert drill which utilises an XPET 11T3.. insert in the central pocket and a SCET 09T3.. insert in the peripheral pocket, cutting diameter 34mm, with a 32mm cylindrical shank with flat according to ISO 9766 and through coolant for maximum drilling depths up to 4 x D.

Product Specifications
EDP Number6758972
Max Depth of Cut (mm)136 mm
Coolant Supply Property1
Min Adjustment Limit (mm)0.25 mm
Max Adjustment Limit (mm)0.5 mm
Connection Diameter (mm)32 mm
Connection Diameter (Inch)1.26"
Connection Diameter Tolerance Machine Sideh6
Cutting Diameter (mm)34 mm
Cutting Diameter (Inch)1.339"
Overall Length (mm)221 mm
Overall Length (Inch)8.701"
Usable Length (mm)145.5 mm
Protruding Length (mm)161 mm
Shank Length (mm)60 mm
Cutting Edge Count1
