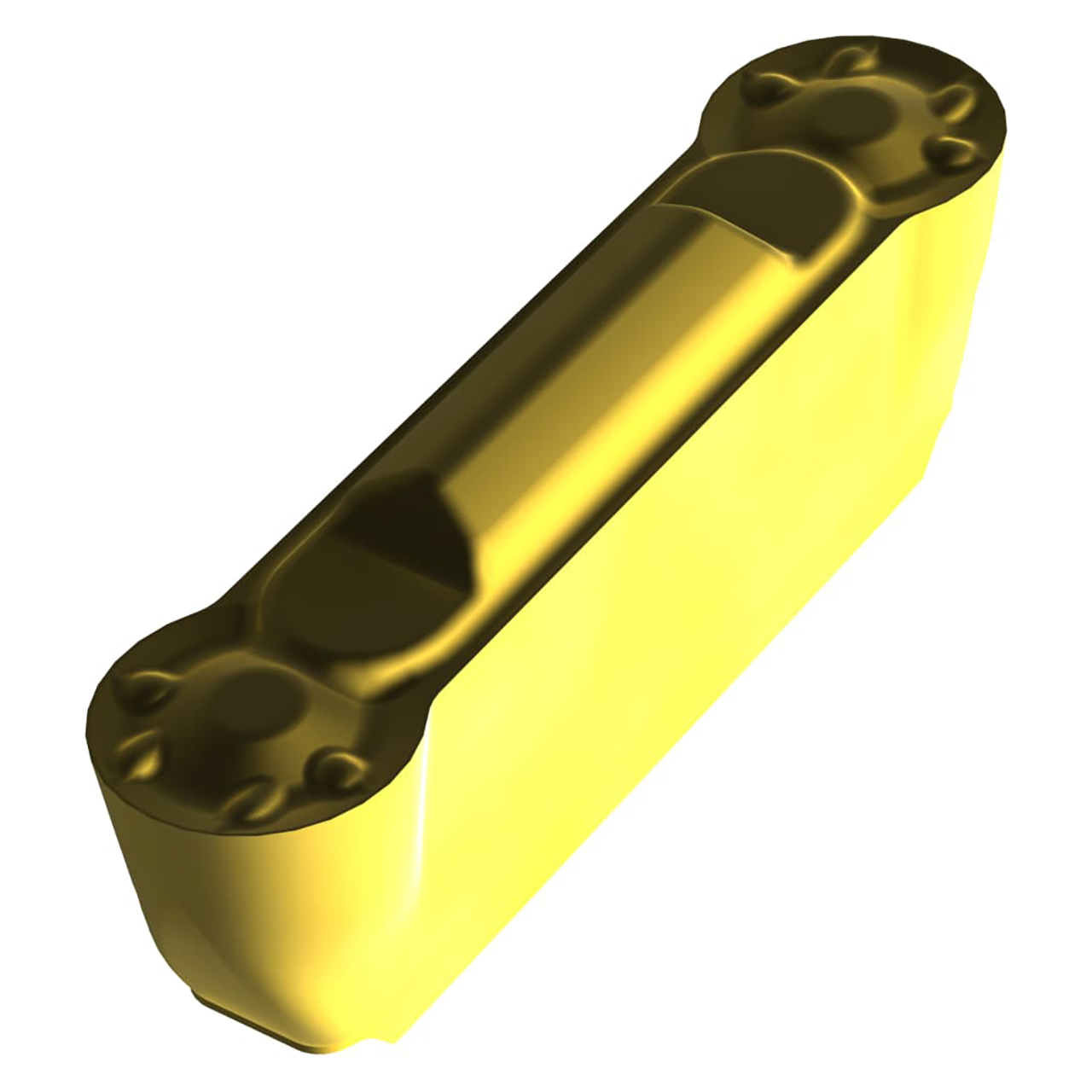

Double ended parting and grooving insert, 12.6 mm long with a 3 mm cutting width and 1.5 mm full radius, an accuracy according to tolerance class-M and chip-breaker MP, grade T8330 PVD coated fine grained WC-Co carbide within ISO-grade ranges P25-P40 and K20-K40 for machining of steel and cast-iron in combination with PRAMET GF..(RL) 0313 and GG..(RL) 0313 parting and grooving tools.
Product Specifications
| EDP Number | 6754265 |
| Cutting Width (Inch) | 0.118" |
| Cutting Width (mm) | 3 mm |
| Cutting Width Lower Tolerance (mm) | -0.05 mm |
| Cutting Width Upper Tolerance (mm) | 0.05 mm |
| Min Cutting Depth (mm) | 0.5 mm |
| Max Cutting Depth (mm) | 1.5 mm |
| Max Cutting Depth (Inch) | 0.059" |
| Coating Property | 1 |
| Inscribed Circle Diameter (Inch) | |
| M-Dimension (mm) | |
| M-Dimension (Inch) | |
| Insert Length (mm) | 12.6 mm |
| Insert Length (Inch) | 0.496" |
| Corner Radius (mm) | 1.5 mm |
| Corner Radius (Inch) | 0.059" |
| Coating Process | PVD |
| Coating | T8330 |
| Surface Color | Gold |
| Cutting Width Lower Tolerance (Inch) | -0.002" |
| Cutting Width Upper Tolerance (Inch) | 0.002" |
| Chipbreaker Manufacturer's Designation | MP |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Ships:
From Partner Facility
Brand:
Pramet
Cutting Width (Inch):
7/64"
Cutting Width (Decimal Inch):
0.1180"
Cutting Width (mm):
3mm
Finish/Coating:
T8330
