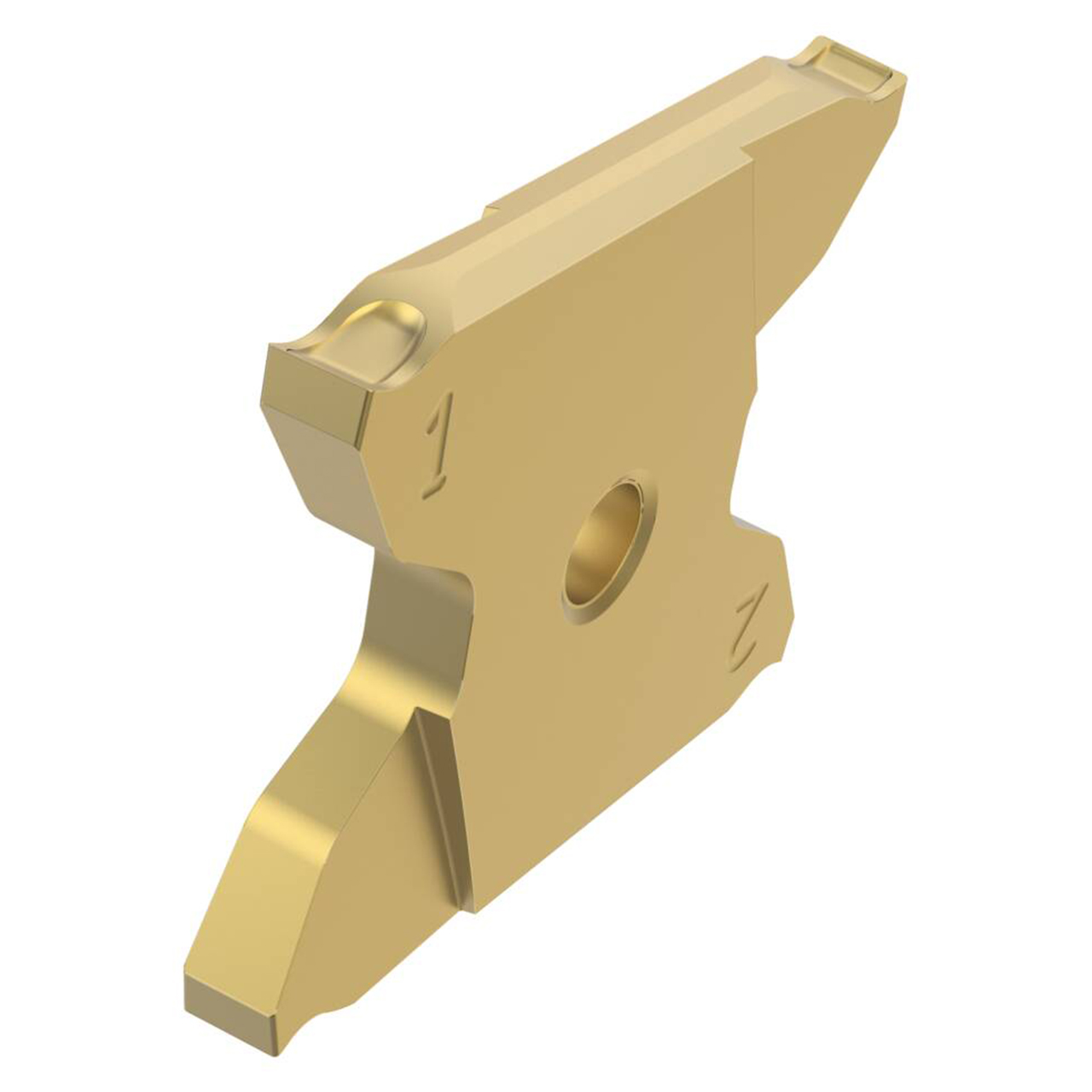

Seco Tools 02823003 | X4GK2503015-0300RN-MC 0.006" Corner Radius x 0.803" Thickness 4 Cutting Edge Carbide Grooving Insert

$54.81
Brand:
Seco Tools
Material:
Carbide
Cutting Width (Inch):
2/17"
Cutting Width (Decimal Inch):
0.1180"
Cutting Width (mm):
3.00mm
Insert Hand:
Right Hand
interval quantity:
1
SKU:
23281662
Weight:
0.04 LBS
Shipping:
Calculated at Checkout
Seco Tools 02823003 | X4GK2503015-0300RN-MC 0.006" Corner Radius x 0.803" Thickness 4 Cutting Edge Carbide Grooving Insert

Product Specifications
Manufacturer Part Number02823003
Insert Gauge Length (Decimal Inch)0.748"
Insert Gauge Length (mm)19.00mm
Insert Length (Decimal Inch)1.001"
Insert Length (mm)25.43mm
Cutting Width (Decimal Inch)0.118"
Cutting Width (mm)3.00mm
Maximum Cutting Depth Insert (Decimal Inch)0.256"
Maximum Cutting Depth Insert (mm)6.50mm
Corner Radius (Decimal Inch)0.006"
Corner Radius (mm)0.15mm
Insert Thickness (Decimal Inch)0.803"
Insert Thickness (mm)20.39mm
Cutting Edge Count4
Clearance Angle Major (Degree)6 Degree
Insert HandRight Hand
Insert Size And ShapeX42503R
MaterialCarbide
Product TypeGrooving Insert
