Product Specifications
| # Manufacturer Number | F0365 |
| Diameter (Decimal Inch) | 0.3150" |
| Diameter (mm) | 8.00mm |
| Pitch | 1.25 TPI |
| Shank Diameter (Decimal Inch) | 0.3180" |
| Shank Diameter (mm) | 8.08mm |
| Overall Length (Decimal Inch) | 3.5430" |
| Overall Length (mm) | 89.99mm |
| Thread Length (Decimal Inch) | 0.4720" |
| Thread Length (mm) | 11.99mm |
| Square Length (Decimal Inch) | 0.3800" |
| Square Length (mm) | 9.65mm |
| Square Size (Decimal Inch) | 0.2380" |
| Square Size (mm) | 6.05mm |
| Neck Diameter (Decimal Inch) | 0.2460" |
| Neck Diameter (mm) | 6.25mm |
| Useable Length (Decimal Inch) | 1.1260" |
| Useable Length (mm) | 28.60mm |
| Drill Size (Decimal Inch) | 0.2702" |
| Drill Size (mm) | 6.86mm |
| Pitch Limit | D5 |
| Helix Angle (Degree) | 50 Degree |
| Coolant Through | No |
| Shank Type | Square |
| Finish / Coating | Oxide |
| Material | HSSE-V3 |
| Chamfer Length | 2P-3P |
| Chamfer Type | Modified Bottoming |

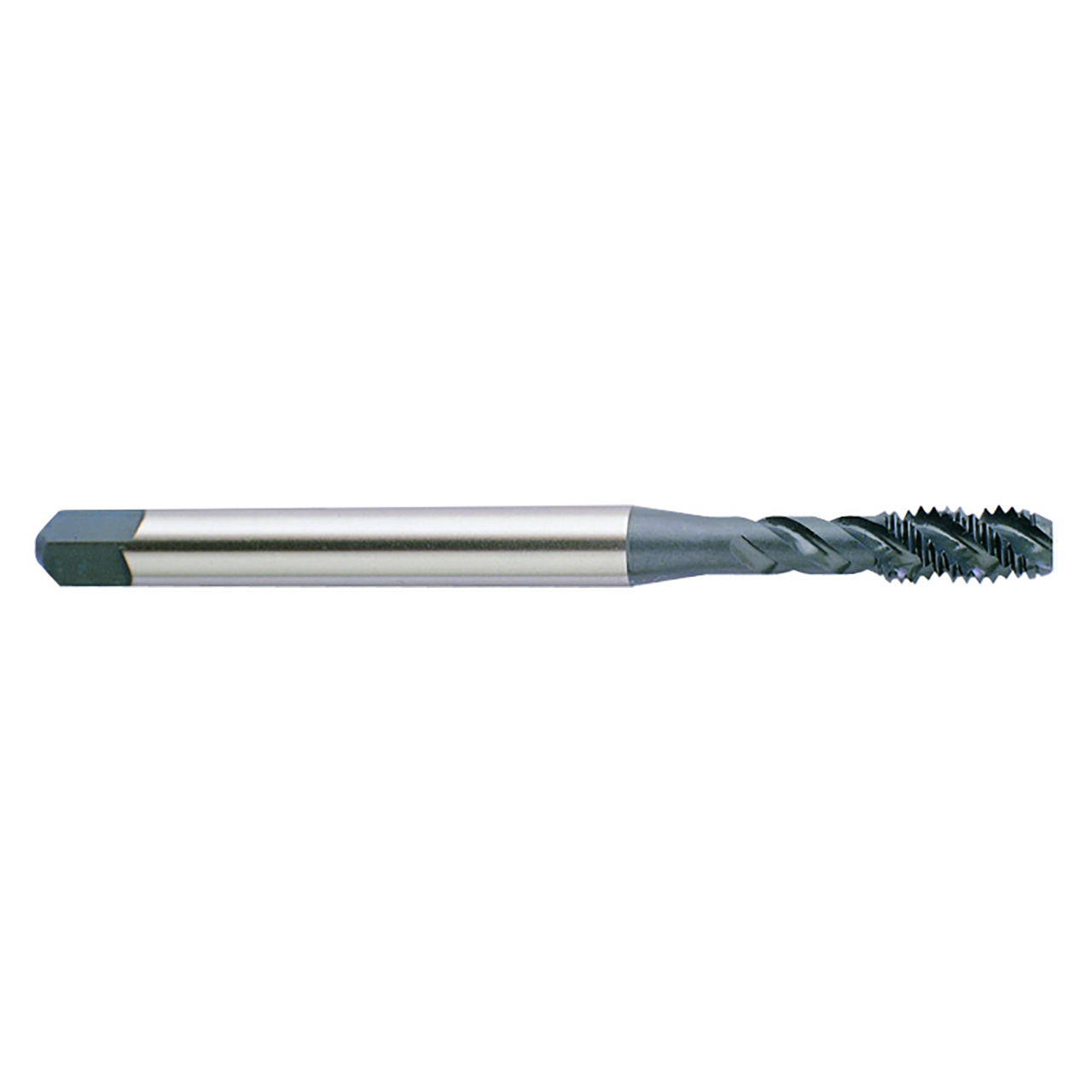

| Product Type | Spiral Flute Thread Tap |
