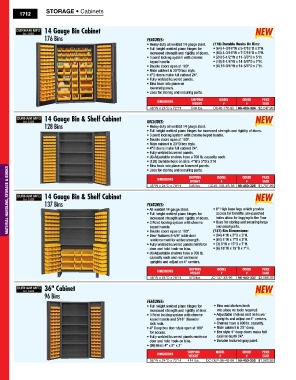

STORAGE • Cabinets
         1712


                   14 Gauge Bin Cabinet
                   176 Bins                                   Features:
                                                              •  Heavy duty all welded 14 gauge steel.  (176) Durable Hooks On Bins:
                                                              •  Full height welded piano hinges for   •  (64) 4-3/16"W x 5-7/16"D x 3"H.
                                                               increased strength and rigidity of doors.  •  (64) 4-3/16"W x 7-7/16"D x 3"H.
                                                              •  3 point locking system with chrome   •  (24) 5-1/2"W x 11-3/8"D x 5"H.
                                                               keyed handle.             •  (18) 8-1/4"W x 14-5/8"D x 7"H.
                                                              •  Double doors open at 180°.  •  (6) 16-3/4"W x 14-5/8"D x 7"H.
                                                              •  Main cabinet is 20"D box style.
                                                              •  4"D doors make full cabinet 24".
                                                              •  Fully welded louvered panels.
                                                              •  Bins hook into place on
                                                               louvered panels.
                                                              •  Uses for storing and securing parts.
                                                                                shippinG    moDel    orDer   priCe
                                                                  Dimensions
                                                                                WeiGht       #         #      eaCh
                                                               48"W x 24"D x 72"H  546 lbs.  DC48-176-95  98-450-324 $2,247.99
                   14 Gauge Bin & shelf Cabinet               Includes:

                   128 Bins                                   •  Heavy duty all welded 14 gauge steel.
                                                              •  Full height welded piano hinges for increased strength and rigidity of doors.
                                                              •  3 point locking system with chrome keyed handle.
                                                              •  Double doors open at 180°.
                                                              •  Main cabinet is 20"D box style.
                                                              •  4"D doors make full cabinet 24".
                                                              •  Fully welded louvered panels.
                                                              •  (4) Adjustable shelves have a 700 lb. capacity each.
                                                              •  (128) Durable hook on bins: 4"W x 5"D x 3"H
                                                              •  Bins hook into place on louvered panels.  moDel  orDer  priCe
    material Handling, Storage & BookS  14 Gauge Bin & shelf Cabinet  Features:  546 lbs.  DC48-128-4S-95 98-450-325 $1,757.99
                                                              •  Uses for storing and securing parts.
                                                                               shippinG
                                                                  Dimensions
                                                                                                              eaCh
                                                                                                       #
                                                                                WeiGht
                                                                                            #
                                                               48"W x 24"D x 70"H
                   137 Bins
                                                                                         •  6" High base legs which provide
                                                              •  All welded 14 gauge steel.
                                                                                          access for forklifts: pre-punched
                                                              •  Full height welded piano hinges for
                                                                                          holes allow for lagging to the floor
                                                               increased strength and rigidity of doors.
                                                              •  3 Point locking system with chrome
                                                                                          and small parts.
                                                               keyed handle.
                                                                                         (137) Bin Dimensions:
                                                              •  Double doors open at 180°.
                                                                                         •  (64) 4"W x 5"D x 3"H.
                                                              •  Door features 6-5/8" wide door   •  Uses for storing and securing large
                                                               reinforcement for added strength.  •  (64) 4"W x 7"D x 3"H.
                                                              •  Fully welded louvered panels reinforce   •  (3) 8"W x 15"D x 7"H.
                                                               door and hold hook-on bins.  •  (6) 16"W x 15"D x 7"H.
                                                              •  (4) Adjustable shelves have a 700 lb.
                                                               capacity each and rest on louver
                                                               uprights and adjust on 4" centers.
                                                                               shippinG    moDel     orDer   priCe
                                                                  Dimensions
                                                                                WeiGht      #          #      eaCh
                                                               48"W x 24"D x 78"H  570 lbs.  JC-137-3S-95  98-450-332 $2,088.99
                   36" Cabinet
                   96 Bins
                                                              Features:
                                                              •  Full height welded piano hinges for   •  Bins and shelves hook
                                                               increased strength and rigidity of door.  into place no tools required.
                                                              •  3 Point locking system with chrome   •  Adjustable shelves rest on louver
                                                               keyed handle and 5/16" diameter    uprights and adjust on 4" centers.
                                                               lock rods.                •  Shelves have a 900 lb. capacity.
                                                              •  4" Deep box door style open at 180°   •  Main cabinet is 20" deep.
                                                               for access.               •  Box style 4" deep doors make full
                                                              •  Fully welded louvered panels reinforce   cabinet depth 24".
                                                               door and hold hook-on bins.   •  Durable textured gray paint.
                                                              •  (96) Bins: 4" x 5" x 3"
                                                                               shippinG   moDel      orDer   priCe
                                                                  Dimensions
                                                                               WeiGht       #          #      eaCh
                                                               36"W x 24"D x 72"H  414 lbs.  DC-DLP-96-4S-95  98-450-355 $1,503.99
