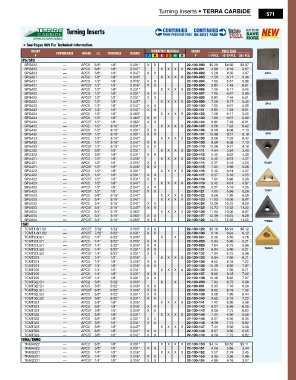

Page 573 - All Industrial Tool Supply | General Catalog

Turning Inserts • TERRA CARBIDE
571

turning Inserts

♦ See Pages 569 For Technical Information.
Insert ChIpbreaker Grade I.C. thICkness radIus WorkpIeCe MaterIal order ________prICe eaCh________
# p M k s n h # 1-9 pCs. 10-29 pCs. 30+ pCs.
spG/spu
SPG322 — APC5 3/8" 1/8" 0.031" X X 22-100-090 $5.29 $4.50 $3.97
SPG323 — APC2 3/8" 1/8" 0.047" X X X X 22-100-091 4.89 4.16 3.67
SPG323 — APC5 3/8" 1/8" 0.047" X X 22-100-092 5.29 4.50 3.97 SPG
SPG421 — APC2 1/2" 1/8" 0.016" X X X X 22-100-093 7.26 6.17 5.45
SPG421 — APC5 1/2" 1/8" 0.016" X X 22-100-094 7.85 6.67 5.89
SPG421 — APC5T 1/2" 1/8" 0.016" X X 22-100-095 8.81 7.49 6.61
SPG422 — APC2 1/2" 1/8" 0.031" X X X X 22-100-096 7.26 6.17 5.45
SPG422 — APC5 1/2" 1/8" 0.031" X X 22-100-097 7.85 6.67 5.89
SPG422 — APC5T 1/2" 1/8" 0.031" X X 22-100-098 8.81 7.49 6.61
SPG423 — APC2 1/2" 1/8" 0.047" X X X X 22-100-099 7.26 6.17 5.45 SPU
SPG423 — APC5 1/2" 1/8" 0.047" X X 22-100-100 7.85 6.67 5.89
SPG423 — APC5T 1/2" 1/8" 0.047" X X 22-100-101 8.81 7.49 6.61
SPG424 — APC2 1/2" 1/8" 0.063" X X X X 22-100-102 7.26 6.17 5.45
SPG424 — APC5 1/2" 1/8" 0.063" X X 22-100-103 7.85 6.67 5.89
SPG424 — APC5T 1/2" 1/8" 0.063" X X 22-100-104 8.81 7.49 6.61
SPG432 — APC2 1/2" 3/16" 0.031" X X X X 22-100-105 8.56 7.28 6.42
SPG432 — APC5 1/2" 3/16" 0.031" X X 22-100-106 9.50 8.08 7.13
SPG432 — APC5T 1/2" 3/16" 0.031" X X 22-100-107 10.90 9.27 8.18 SPU
SPG433 — APC2 1/2" 3/16" 0.047" X X X X 22-100-108 8.56 7.28 6.42
SPG433 — APC5 1/2" 3/16" 0.047" X X 22-100-109 9.50 8.08 7.13
SPG433 — APC5T 1/2" 3/16" 0.047" X X 22-100-110 10.90 9.27 8.18
SPU322 — APC2 3/8" 1/8" 0.031" X X X X 22-100-111 4.64 3.94 3.48
SPU322 — APC5 3/8" 1/8" 0.031" X X 22-100-112 5.45 4.63 4.09
SPU421 — APC2 1/2" 1/8" 0.016" X X X X 22-100-113 5.42 4.61 4.07
SPU421 — APC5 1/2" 1/8" 0.016" X X 22-100-114 6.07 5.16 4.55 TCMT
SPU421 — APC5T 1/2" 1/8" 0.016" X X 22-100-115 7.01 5.96 5.26
SPU422 — APC2 1/2" 1/8" 0.031" X X X X 22-100-116 5.42 4.61 4.07
SPU422 — APC5 1/2" 1/8" 0.031" X X 22-100-117 6.07 5.16 4.55
SPU422 — APC5T 1/2" 1/8" 0.031" X X 22-100-118 7.01 5.96 5.26
SPU423 — APC2 1/2" 1/8" 0.047" X X X X 22-100-119 5.42 4.61 4.07
SPU423 — APC5 1/2" 1/8" 0.047" X X 22-100-120 6.07 5.16 4.55
SPU423 — APC5T 1/2" 1/8" 0.047" X X 22-100-121 7.01 5.96 5.26 TCMT
SPU533 — APC2 5/8" 3/16" 0.047" X X X X 22-100-122 8.66 7.36 6.50
SPU633 — APC2 3/4" 3/16" 0.047" X X X X 22-100-123 11.83 10.06 8.87
SPU633 — APC5 3/4" 3/16" 0.047" X X 22-100-124 12.39 10.53 9.29
SPU633 — APC5T 3/4" 3/16" 0.047" X X 22-100-125 14.73 12.52 11.05
SPU634 — APC2 3/4" 3/16" 0.063" X X X X 22-100-126 11.83 10.06 8.87
SPU634 — APC5 3/4" 3/16" 0.063" X X 22-100-127 12.39 10.53 9.29
SPU634 — APC5T 3/4" 3/16" 0.063" X X 22-100-128 14.73 12.52 11.05 TNMG
tCMt
TCMT1.8(1.5)1 — APC5T 7/32" 3/32" 0.016" X X 22-100-129 $8.16 $6.94 $6.12
TCMT1.8(1.5)2 — APC5T 7/32" 3/32" 0.031" X X 22-100-130 8.16 6.94 6.12
TCMT2(1.5)1 — APC2 1/4" 3/32" 0.016" X X 22-100-027 6.35 5.40 4.76
TCMT2(1.5)1 — APC5 1/4" 3/32" 0.016" X X 22-100-028 6.94 5.90 5.21
TCMT2(1.5)1 — APC5T 1/4" 3/32" 0.016" X X 22-100-029 7.94 6.75 5.96
TCMT2(1.5)2 — APC5 1/4" 3/32" 0.031" X X 22-100-131 6.94 5.90 5.21 TNMG
TCMT2(1.5)2 — APC5T 1/4" 3/32" 0.031" X X 22-100-132 7.94 6.75 5.96
TCMT221 — APC2 1/4" 1/8" 0.016" X X X X 22-100-133 8.94 7.60 6.71
TCMT221 — APC5 1/4" 1/8" 0.016" X X 22-100-134 9.62 8.18 7.22
TCMT221 — APC5T 1/4" 1/8" 0.016" X X 22-100-135 10.49 8.92 7.87
TCMT222 — APC2 1/4" 1/8" 0.031" X X X X 22-100-136 8.94 7.60 6.71
TCMT222 — APC5 1/4" 1/8" 0.031" X X 22-100-137 9.62 8.18 7.22
TCMT222 — APC5T 1/4" 1/8" 0.031" X X 22-100-138 10.49 8.92 7.87
TCMT3(2.5)1 — APC2 3/8" 5/32" 0.016" X X 22-100-030 7.94 6.75 5.96
TCMT3(2.5)1 — APC5 3/8" 5/32" 0.016" X X 22-100-031 8.35 7.10 6.26
TCMT3(2.5)1 — APC5T 3/8" 5/32" 0.016" X X 22-100-032 9.62 8.18 7.22
TCMT3(2.5)2 — APC5 3/8" 5/32" 0.031" X X 22-100-139 8.59 7.30 6.44
TCMT3(2.5)2 — APC5T 3/8" 5/32" 0.031" X X 22-100-140 9.62 8.18 7.22
TCMT321 — APC2 3/8" 1/8" 0.016" X X X X 22-100-141 7.41 6.30 5.56
TCMT321 — APC5 3/8" 1/8" 0.016" X X 22-100-142 8.07 6.86 6.05
TCMT321 — APC5T 3/8" 1/8" 0.016" X X 22-100-143 9.09 7.73 6.82
TCMT322 — APC2 3/8" 1/8" 0.031" X X X X 22-100-144 7.41 6.30 5.56
TCMT322 — APC5 3/8" 1/8" 0.031" X X 22-100-145 8.07 6.86 6.05
TCMT322 — APC5T 3/8" 1/8" 0.031" X X 22-100-146 9.09 7.73 6.82
TCMT323 — APC2 3/8" 1/8" 0.047" X X X X 22-100-147 7.41 6.30 5.56
TCMT323 — APC5 3/8" 1/8" 0.047" X X 22-100-148 8.07 6.86 6.05
TCMT323 — APC5T 3/8" 1/8" 0.047" X X 22-100-149 9.09 7.73 6.82
tnMa/tnMG
TNMA322 — APC2 3/8" 1/8" 0.031" X X X X 22-100-150 $4.14 $3.52 $3.11
TNMA322 — APC5 3/8" 1/8" 0.031" X X 22-100-151 4.58 3.89 3.44
TNMG221 — APC2 1/4" 1/8" 0.016" X X X X 22-100-152 3.27 2.78 2.45
TNMG221 — APC5 1/4" 1/8" 0.016" X X 22-100-153 3.95 3.36 2.96
TNMG221 — APC5T 1/4" 1/8" 0.016" X X 22-100-154 4.89 4.16 3.67
