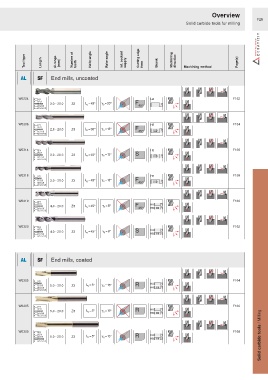

Overview
F26
Solid carbide tools for milling
Tool type Length Ø-range [mm] Number of teeth Helix angle Rake angle Int. coolant supply Cutting edge form Shank Machining direction Machining method Page(s)
End mills, uncoated
W0224 HA F152
2.0 - 20.0 Z2
W0306 HB F154
2.8 - 20.0 Z3
W0314 HB F156
3.0 - 20.0 Z3
W0316 HB F158
3.0 - 20.0 Z3
W0319 F160
HA
4.0 - 20.0 Z3
HB
W0320 F162
HA
4.0 - 20.0 Z3
HB
End mills, coated
W0305 F164
HA
5.0 - 20.0 Z3
HB
W0305 F166
HA
5.0 - 20.0 Z3
HB
W0305 F168
HA Solid carbide tools / Milling
5.0 - 20.0 Z3
HB
