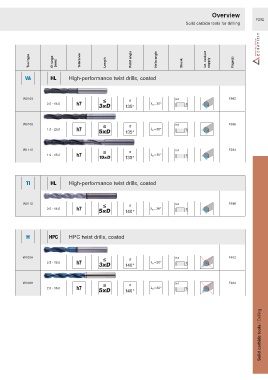

Page 1289 - Ceratizit Catalog
P. 1289

Overview
                                                                                                                   F292
                                                                                    Solid carbide tools for drilling







              Tool type  Ø-range     [mm]  Tolerance  Length  Point angle  Helix angle  Shank  Int. coolant   supply  Page(s)




                                High-performance twist drills, coated




           W0109                                                               HA                      F382
                                                          σ
                      3.0 - 16.0
                                                         135°


           W0108                                                               HA                      F386
                                                          σ
                      1.0 - 25.0
                                                         135°


           W1110                                                               HA                      F394
                                                          σ
                      1.0 - 16.0
                                                         135°




                                High-performance twist drills, coated




           W0115                                                               HA                      F398
                                                          σ
                      3.0 - 16.0
                                                         140°




                                HPC twist drills, coated




           W105H                                                               HA                      F402
                                                          σ
                      2.5 - 16.0
                                                         140°


           W106H                                                               HA                      F404
                                                          σ
                      2.6 - 16.0
                                                         140°



                                                                                                                     Solid carbide tools / Drilling
   1284   1285   1286   1287   1288   1289   1290   1291   1292   1293   1294
