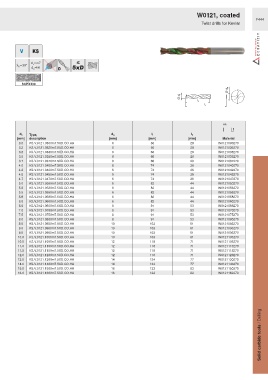

Page 1441 - Ceratizit Catalog

W0121, coated
F444
Twist drills for Kevlar

SCPX430
Ø d A
Ø d 1
l 2
l 1

HA

d 1 Type, d A l 1 l 2
[mm] description [mm] [mm] [mm] Material
3.0 KS.V.0121.0300m7.5XD.CO.HA 6 66 28 W0121030270
3.2 KS.V.0121.0320m7.5XD.CO.HA 6 66 28 W0121032270
3.3 KS.V.0121.0330m7.5XD.CO.HA 6 66 28 W0121033270
3.5 KS.V.0121.0350m7.5XD.CO.HA 6 66 28 W0121035270
3.7 KS.V.0121.0370m7.5XD.CO.HA 6 66 28 W0121037270
4.0 KS.V.0121.0400m7.5XD.CO.HA 6 74 36 W0121040270
4.2 KS.V.0121.0420m7.5XD.CO.HA 6 74 36 W0121042270
4.5 KS.V.0121.0450m7.5XD.CO.HA 6 74 36 W0121045270
4.7 KS.V.0121.0470m7.5XD.CO.HA 6 74 36 W0121047270
5.0 KS.V.0121.0500m7.5XD.CO.HA 6 82 44 W0121050270
5.3 KS.V.0121.0530m7.5XD.CO.HA 6 82 44 W0121053270
5.5 KS.V.0121.0550m7.5XD.CO.HA 6 82 44 W0121055270
5.8 KS.V.0121.0580m7.5XD.CO.HA 6 82 44 W0121058270
6.0 KS.V.0121.0600m7.5XD.CO.HA 6 82 44 W0121060270
6.5 KS.V.0121.0650m7.5XD.CO.HA 8 91 53 W0121065270
7.0 KS.V.0121.0700m7.5XD.CO.HA 8 91 53 W0121070270
7.5 KS.V.0121.0750m7.5XD.CO.HA 8 91 53 W0121075270
8.0 KS.V.0121.0800m7.5XD.CO.HA 8 91 53 W0121080270
8.5 KS.V.0121.0850m7.5XD.CO.HA 10 103 61 W0121085270
9.0 KS.V.0121.0900m7.5XD.CO.HA 10 103 61 W0121090270
9.5 KS.V.0121.0950m7.5XD.CO.HA 10 103 61 W0121095270
10.0 KS.V.0121.1000m7.5XD.CO.HA 10 103 61 W0121100270
10.5 KS.V.0121.1050m7.5XD.CO.HA 12 118 71 W0121105270
11.0 KS.V.0121.1100m7.5XD.CO.HA 12 118 71 W0121110270
11.5 KS.V.0121.1150m7.5XD.CO.HA 12 118 71 W0121115270
12.0 KS.V.0121.1200m7.5XD.CO.HA 12 118 71 W0121120270
13.0 KS.V.0121.1300m7.5XD.CO.HA 14 124 77 W0121130270
14.0 KS.V.0121.1400m7.5XD.CO.HA 14 124 77 W0121140270
15.0 KS.V.0121.1500m7.5XD.CO.HA 16 133 83 W0121150270
16.0 KS.V.0121.1600m7.5XD.CO.HA 16 133 83 W0121160270

Solid carbide tools / Drilling
