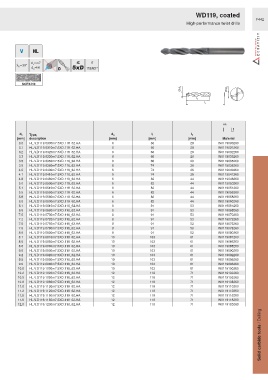

Page 1439 - Ceratizit Catalog

WD119, coated
F442
High-performance twist drills

σ
118/62°

SCPX410
Ø d 1 Ø d A

l 2
l 1

HA

d 1 Type, d A l 1 l 2
[mm] description [mm] [mm] [mm] Material
3.0 HL.V.D119.0300m7.5XD.118_62.HA 6 66 28 W0119030260
3.1 HL.V.D119.0310m7.5XD.118_62.HA 6 66 28 W0119031260
3.2 HL.V.D119.0320m7.5XD.118_62.HA 6 66 28 W0119032260
3.3 HL.V.D119.0330m7.5XD.118_62.HA 6 66 28 W0119033260
3.5 HL.V.D119.0350m7.5XD.118_62.HA 6 66 28 W0119035260
3.8 HL.V.D119.0380m7.5XD.118_62.HA 6 74 36 W0119038260
4.0 HL.V.D119.0400m7.5XD.118_62.HA 6 74 36 W0119040260
4.1 HL.V.D119.0410m7.5XD.118_62.HA 6 74 36 W0119041260
4.8 HL.V.D119.0480m7.5XD.118_62.HA 6 82 44 W0119048260
5.0 HL.V.D119.0500m7.5XD.118_62.HA 6 82 44 W0119050260
5.1 HL.V.D119.0510m7.5XD.118_62.HA 6 82 44 W0119051260
5.5 HL.V.D119.0550m7.5XD.118_62.HA 6 82 44 W0119055260
5.8 HL.V.D119.0580m7.5XD.118_62.HA 6 82 44 W0119058260
6.0 HL.V.D119.0600m7.5XD.118_62.HA 6 82 44 W0119060260
6.1 HL.V.D119.0610m7.5XD.118_62.HA 8 91 53 W0119061260
6.8 HL.V.D119.0680m7.5XD.118_62.HA 8 91 53 W0119068260
7.0 HL.V.D119.0700m7.5XD.118_62.HA 8 91 53 W0119070260
7.2 HL.V.D119.0720m7.5XD.118_62.HA 8 91 53 W0119072260
7.5 HL.V.D119.0750m7.5XD.118_62.HA 8 91 53 W0119075260
7.8 HL.V.D119.0780m7.5XD.118_62.HA 8 91 53 W0119078260
8.0 HL.V.D119.0800m7.5XD.118_62.HA 8 91 53 W0119080260
8.1 HL.V.D119.0810m7.5XD.118_62.HA 10 103 61 W0119081260
8.5 HL.V.D119.0850m7.5XD.118_62.HA 10 103 61 W0119085260
8.8 HL.V.D119.0880m7.5XD.118_62.HA 10 103 61 W0119088260
9.0 HL.V.D119.0900m7.5XD.118_62.HA 10 103 61 W0119090260
9.2 HL.V.D119.0920m7.5XD.118_62.HA 10 103 61 W0119092260
9.5 HL.V.D119.0950m7.5XD.118_62.HA 10 103 61 W0119095260
9.8 HL.V.D119.0980m7.5XD.118_62.HA 10 103 61 W0119098260
10.0 HL.V.D119.1000m7.5XD.118_62.HA 10 103 61 W0119100260
10.2 HL.V.D119.1020m7.5XD.118_62.HA 12 118 71 W0119102260
10.5 HL.V.D119.1050m7.5XD.118_62.HA 12 118 71 W0119105260
10.8 HL.V.D119.1080m7.5XD.118_62.HA 12 118 71 W0119108260
11.0 HL.V.D119.1100m7.5XD.118_62.HA 12 118 71 W0119110260
11.2 HL.V.D119.1120m7.5XD.118_62.HA 12 118 71 W0119112260
11.5 HL.V.D119.1150m7.5XD.118_62.HA 12 118 71 W0119115260
11.8 HL.V.D119.1180m7.5XD.118_62.HA 12 118 71 W0119118260
12.0 HL.V.D119.1200m7.5XD.118_62.HA 12 118 71 W0119120260
Solid carbide tools / Drilling
