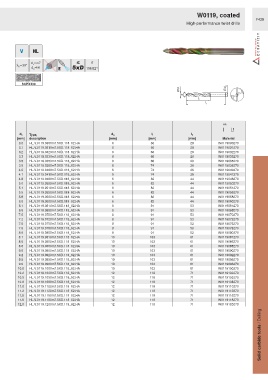

Page 1435 - Ceratizit Catalog

W0119, coated
F438
High-performance twist drills

σ
118/62°

SCPX430
Ø d 1 Ø d A
σ
l
2
l
1

HA

d 1 Type, d A l 1 l 2
[mm] description [mm] [mm] [mm] Material
3.0 HL.V.0119.0300m7.5XD.118_62.HA 6 66 28 W0119030270
3.1 HL.V.0119.0310m7.5XD.118_62.HA 6 66 28 W0119031270
3.2 HL.V.0119.0320m7.5XD.118_62.HA 6 66 28 W0119032270
3.3 HL.V.0119.0330m7.5XD.118_62.HA 6 66 28 W0119033270
3.5 HL.V.0119.0350m7.5XD.118_62.HA 6 66 28 W0119035270
3.8 HL.V.0119.0380m7.5XD.118_62.HA 6 74 36 W0119038270
4.0 HL.V.0119.0400m7.5XD.118_62.HA 6 74 36 W0119040270
4.1 HL.V.0119.0410m7.5XD.118_62.HA 6 74 36 W0119041270
4.8 HL.V.0119.0480m7.5XD.118_62.HA 6 82 44 W0119048270
5.0 HL.V.0119.0500m7.5XD.118_62.HA 6 82 44 W0119050270
5.1 HL.V.0119.0510m7.5XD.118_62.HA 6 82 44 W0119051270
5.5 HL.V.0119.0550m7.5XD.118_62.HA 6 82 44 W0119055270
5.8 HL.V.0119.0580m7.5XD.118_62.HA 6 82 44 W0119058270
6.0 HL.V.0119.0600m7.5XD.118_62.HA 6 82 44 W0119060270
6.1 HL.V.0119.0610m7.5XD.118_62.HA 8 91 53 W0119061270
6.8 HL.V.0119.0680m7.5XD.118_62.HA 8 91 53 W0119068270
7.0 HL.V.0119.0700m7.5XD.118_62.HA 8 91 53 W0119070270
7.2 HL.V.0119.0720m7.5XD.118_62.HA 8 91 53 W0119072270
7.5 HL.V.0119.0750m7.5XD.118_62.HA 8 91 53 W0119075270
7.8 HL.V.0119.0780m7.5XD.118_62.HA 8 91 53 W0119078270
8.0 HL.V.0119.0800m7.5XD.118_62.HA 8 91 53 W0119080270
8.1 HL.V.0119.0810m7.5XD.118_62.HA 10 103 61 W0119081270
8.5 HL.V.0119.0850m7.5XD.118_62.HA 10 103 61 W0119085270
8.8 HL.V.0119.0880m7.5XD.118_62.HA 10 103 61 W0119088270
9.0 HL.V.0119.0900m7.5XD.118_62.HA 10 103 61 W0119090270
9.2 HL.V.0119.0920m7.5XD.118_62.HA 10 103 61 W0119092270
9.5 HL.V.0119.0950m7.5XD.118_62.HA 10 103 61 W0119095270
9.8 HL.V.0119.0980m7.5XD.118_62.HA 10 103 61 W0119098270
10.0 HL.V.0119.1000m7.5XD.118_62.HA 10 103 61 W0119100270
10.2 HL.V.0119.1020m7.5XD.118_62.HA 12 118 71 W0119102270
10.5 HL.V.0119.1050m7.5XD.118_62.HA 12 118 71 W0119105270
10.8 HL.V.0119.1080m7.5XD.118_62.HA 12 118 71 W0119108270
11.0 HL.V.0119.1100m7.5XD.118_62.HA 12 118 71 W0119110270
11.2 HL.V.0119.1120m7.5XD.118_62.HA 12 118 71 W0119112270
11.5 HL.V.0119.1150m7.5XD.118_62.HA 12 118 71 W0119115270
11.8 HL.V.0119.1180m7.5XD.118_62.HA 12 118 71 W0119118270
12.0 HL.V.0119.1200m7.5XD.118_62.HA 12 118 71 W0119120270
Solid carbide tools / Drilling
