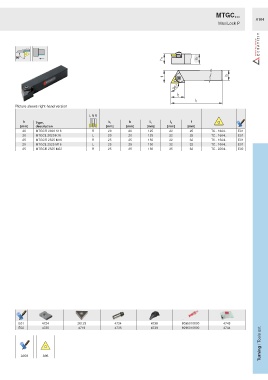

Page 185 - Ceratizit Catalog
P. 185
MTGC...
A164
MaxiLock P
90° h 1 h
b
f
90°
l 2
l 1
Picture shows right-hand version
L N R
h Type, h 1 b l 1 l 2 f
[mm] description [mm] [mm] [mm] [mm] [mm]
20 MTGCR 2020 K16 R 20 20 125 32 25 TC.. 1604.. E01
20 MTGCL 2020 K16 L 20 20 125 32 25 TC.. 1604.. E01
25 MTGCR 2525 M16 R 25 25 150 32 32 TC.. 1604.. E01
25 MTGCL 2525 M16 L 25 25 150 32 32 TC.. 1604.. E01
25 MTGCR 2525 M22 R 25 25 150 35 32 TC.. 2204.. E02
E01 4724 26123 4734 4738 8095010600 4743
Turning / Tools ext.
E02 4725 4719 4735 4739 8095010600 4744
A303 A96
