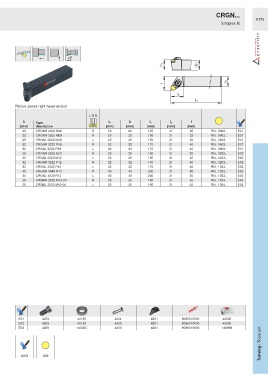

Page 191 - Ceratizit Catalog
P. 191
CRGN...
A170
Simplex N
h 1 h
b
f
l 2
l 1
Picture shows right-hand version
L N R
h Type, h 1 b l 1 l 2 f
[mm] description [mm] [mm] [mm] [mm] [mm]
20 CRGNR 2020 K09 R 20 20 125 21 25 RN.. 0903.. E01
25 CRGNR 2525 M09 R 25 25 150 21 32 RN.. 0903.. E01
25 CRGNL 2525 M09 L 25 25 150 21 32 RN.. 0903.. E01
32 CRGNR 3232 P09 R 32 32 170 21 40 RN.. 0903.. E01
32 CRGNL 3232 P09 L 32 32 170 21 40 RN.. 0903.. E01
25 CRGNR 2525 M12 R 25 25 150 21 32 RN.. 1203.. E02
25 CRGNL 2525 M12 L 25 25 150 21 32 RN.. 1203.. E02
32 CRGNR 3232 P12 R 32 32 170 21 40 RN.. 1203.. E02
32 CRGNL 3232 P12 L 32 32 170 21 40 RN.. 1203.. E02
40 CRGNR 4040 R12 R 40 40 200 21 50 RN.. 1203.. E02
40 CRGNL 4040 R12 L 40 40 200 21 50 RN.. 1203.. E02
25 CRGNR 2525 M12-04 R 25 25 150 21 32 RN.. 1204.. E03
25 CRGNL 2525 M12-04 L 25 25 150 21 32 RN.. 1204.. E03
E01 4259 40187 4211 4261 8095010600 40505
E02 4259 40192 4210 4261 8095010600 40506
Turning / Tools ext.
E03 4259 146066 4210 4261 8095010600 146868
A303 A99
