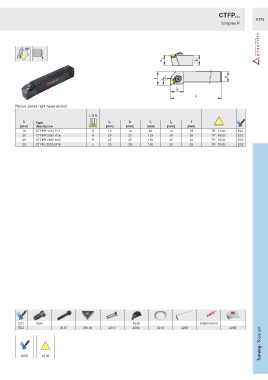

Page 199 - Ceratizit Catalog
P. 199
CTFP...
A178
Simplex P
90°
h 1 h
90° b
f
l 2
l 1
Picture shows right-hand version
L N R
h Type, h 1 b l 1 l 2 f
[mm] description [mm] [mm] [mm] [mm] [mm]
12 CTFPR 1212 F11 R 12 12 80 14 16 TP.. 1103.. E01
20 CTFPR 2020 K16 R 20 20 125 28 25 TP.. 1603.. E02
25 CTFPR 2525 M16 R 25 25 150 32 32 TP.. 1603.. E02
25 CTFPL 2525 M16 L 25 25 150 32 32 TP.. 1603.. E02
E01 4524 4523 8095010500
Turning / Tools ext.
E02 4147 26126 4210 4265 4213 4209 4292
A303 A105
