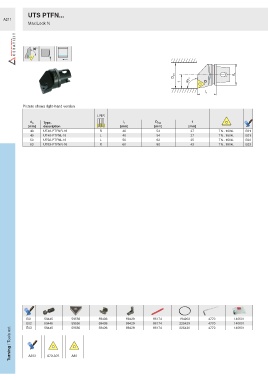

Page 232 - Ceratizit Catalog
P. 232
UTS PTFN...
A211
MaxiLock N
90°
D min d A
90°
f
l 1
Picture shows right-hand version
L N R
d A Type, l 1 D min f
[mm] description [mm] [mm] [mm]
40 UT40-PTFNR-16 R 40 54 27 TN.. 1604.. E01
40 UT40-PTFNL-16 L 40 54 27 TN.. 1604.. E01
50 UT50-PTFNL-16 L 50 63 35 TN.. 1604.. E02
63 UT63-PTFNR-16 R 60 80 43 TN.. 1604.. E03
E01 59445 59556 59436 59429 86174 194263 4770 140601
E02 59445 59556 59436 59429 86174 225429 4770 140601
