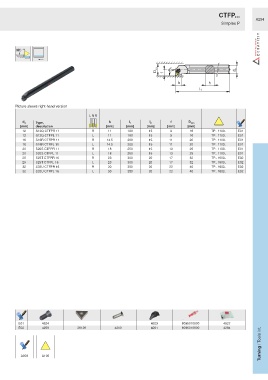

Page 275 - Ceratizit Catalog
P. 275
CTFP...
A254
Simplex P
90°
D min 90° d A
f
l 2 h
l 1
Picture shows right-hand version
L N R
d A Type, h l 1 l 2 f D min
[mm] description [mm] [mm] [mm] [mm] [mm]
12 S12Q CTFPR 11 R 11 180 15 9 16 TP.. 1103.. E01
12 S12Q CTFPL 11 L 11 180 15 9 16 TP.. 1103.. E01
16 S16R CTFPR 11 R 14.5 200 15 11 20 TP.. 1103.. E01
16 S16R CTFPL 11 L 14.5 200 15 11 20 TP.. 1103.. E01
20 S20S CTFPR 11 R 18 250 15 13 25 TP.. 1103.. E01
20 S20S CTFPL 11 L 18 250 15 13 25 TP.. 1103.. E01
25 S25T CTFPR 16 R 23 300 20 17 32 TP.. 1603.. E02
25 S25T CTFPL 16 L 23 300 20 17 32 TP.. 1603.. E02
32 S32U CTFPR 16 R 30 350 20 22 40 TP.. 1603.. E02
32 S32U CTFPL 16 L 30 350 20 22 40 TP.. 1603.. E02
E01 4524 4523 8095010500 4527
E02 4259 26126 4210 4261 8095010600 4294
