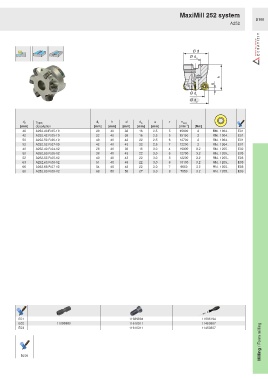

Page 515 - Ceratizit Catalog

MaxiMill 252 system
B188
A252

Ø d
Ø d
A

h

a

Ø d
1
Ø d
2

d 2 Type, d 1 h d d A a z n max
-1
[mm] description [mm] [mm] [mm] [mm] [mm] [min ] [Nm]

40 A252.40.R.05-10 30 40 38 16 2.5 5 15900 2 RN.. 1004.. E01

42 A252.42.R.05-10 32 40 38 16 2.5 5 15150 2 RN.. 1004.. E01

50 A252.50.R.06-10 40 40 43 22 2.5 6 12700 2 RN.. 1004.. E01

52 A252.52.R.07-10 42 40 43 22 2.5 7 12200 2 RN.. 1004.. E01

40 A252.40.R.04-12 28 40 38 16 3.0 4 15900 3.2 RN.. 1205.. E02

50 A252.50.R.05-12 38 40 43 22 3.0 5 12700 3.2 RN.. 1205.. E03

52 A252.52.R.05-12 40 40 43 22 3.0 5 12200 3.2 RN.. 1205.. E03

63 A252.63.R.06-12 51 40 48 22 3.0 6 10100 3.2 RN.. 1205.. E03
66 A252.66.R.07-12 54 40 48 22 3.0 7 9650 3.2 RN.. 1205.. E03

80 A252.80.R.08-12 68 50 58 27 3.0 8 7950 3.2 RN.. 1205.. E03

E01 11689894 11696194
E02 11036880 11610311 11450867
Milling / Form milling
E03 11610311 11450867

B276
