Balancing
B267
HSC/HPC

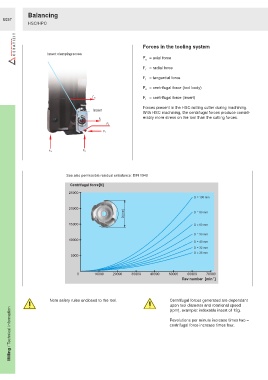

Forces in the tooling system

Insert clamping screw
F = axial force
a
F = radial force
r
F = tangential force
t
F = centrifugal force (tool body)
c
F c F = centrifugal force (insert)
i
Forces present in the HSC milling cutter during machining.
Insert
With HSC machining, the centrifugal forces produce consid-
erably more stress on the tool than the cutting forces.
F i
F t
F r

F a F a

See also permissible residual unbalance: DIN 1940

Centrifugal force[N]
25000
D = 100 mm

20000
D [mm] D = 80 mm

15000 D = 63 mm
D = 50 mm
10000
D = 40 mm
D = 32 mm
D = 25 mm
5000

0 10000 20000 30000 40000 50000 60000 70000
-1
Rev number [min ]

Note safety rules enclosed to the tool. Centrifugal forces generated are dependant
upon tool diameter and rotational speed
Milling / Technical information Revolutions per minute increase times two =
(rpm), example: indexable insert of 12g.

centrifugal force increase times four.
