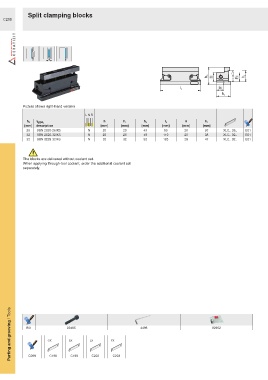

Split clamping blocks
C205

h 3 h h 1 h 2

b
l 1
b 1

Picture shows right-hand version

L N R

h 2 Type, h h 1 h 3 l 1 b b 1
[mm] description [mm] [mm] [mm] [mm] [mm] [mm]

26 SBN 2020-26 KS N 20 20 43 90 20 37 XLC.. 26.. E01
32 SBN 2520-32 KS N 25 25 49 110 20 38 XLC.. 32.. E01

32 SBN 3229-32 KS N 32 32 52 120 29 47 XLC.. 32.. E01

The blocks are delivered without coolant set.
When applying through-tool coolant, order the additional coolant set
separately.
