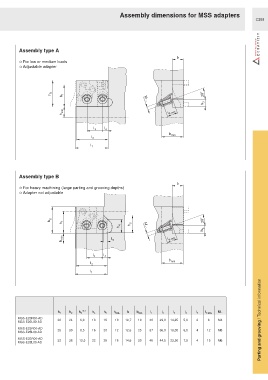

Assembly dimensions for MSS adapters
C268

Assembly type A
b
○ For low or medium loads
○ Adjustable adapter

h 2 h 1 M .. 20°
h 3
h min l 6 min

l 3 l 4
b min
l 2
l 1

Assembly type B
b
○ For heavy machining (large parting and grooving depths)
○ Adapter not adjustable

h 2 h 1 20°
h 4 h 5 M ..
h 3
h min l 5 l min
6

l 3 l 4
b
l 2 min
l 1

±0,1 b M..
h 1 h 2 h 3 h 4 h 5 h min. b min. l 1 l 2 l 3 l 4 l 5 l 6 min.
MSS-E20R00-AD 20 24 6,0 13 16 10 10,7 19 30 29,0 14,25 5,0 3 8 M4 Parting and grooving / Technical information
MSS-E20L00-AD
MSS-E25R00-AD 25 30 8,5 16 20 12 12,6 25 37 36,0 18,00 6,5 4 12 M5
MSS-E25L00-AD
MSS-E32R00-AD 32 38 13,5 22 26 16 14,6 30 46 44,5 23,50 7,5 4 15 M6
MSS-E32L00-AD
