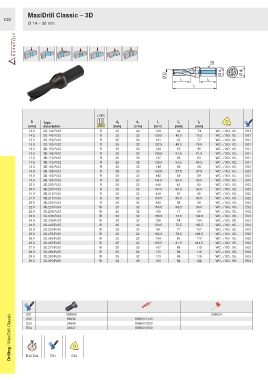

Page 904 - Ceratizit Catalog

MaxiDrill Classic – 3D
D29
Ø 14 – 30 mm

h6

Ø d A Ø d 1
D
Ø
l 2 l 3
l 1

L N R
D Type, d A d 1 l 1 l 2 l 3
[mm] description [mm] [mm] [mm] [mm] [mm]

14.0 3D.140.R.02 R 25 32 128 44 74 WC.. / XO.. 02.. E01

14.5 3D.145.R.02 R 25 32 129.5 45.5 75.5 WC.. / XO.. 02.. E01

15.0 3D.150.R.02 R 25 32 131 47 77 WC.. / XO.. 02.. E01
15.5 3D.155.R.02 R 25 32 132.5 48.5 78.5 WC.. / XO.. 02.. E01

16.0 3D.160.R.02 R 25 32 134 50 80 WC.. / XO.. 02.. E01

16.5 3D.165.R.02 R 25 32 135.5 51.5 81.5 WC.. / XO.. 02.. E01

17.0 3D.170.R.02 R 25 32 137 53 83 WC.. / XO.. 02.. E01

17.5 3D.175.R.02 R 25 32 138.5 54.5 84.5 WC.. / XO.. 02.. E01
18.0 3D.180.R.03 R 25 32 140 56 86 WC.. / XO.. 03.. E02

18.5 3D.185.R.03 R 25 32 140.5 57.5 87.5 WC.. / XO.. 03.. E02

19.0 3D.190.R.03 R 25 32 143 59 89 WC.. / XO.. 03.. E02

19.5 3D.195.R.03 R 25 32 144.5 60.5 90.5 WC.. / XO.. 03.. E02

20.0 3D.200.R.03 R 25 32 146 62 92 WC.. / XO.. 03.. E02

20.5 3D.205.R.03 R 25 32 147.5 63.5 93.5 WC.. / XO.. 03.. E02

21.0 3D.210.R.03 R 25 32 149 65 95 WC.. / XO.. 03.. E02

21.5 3D.215.R.03 R 25 32 150.5 66.5 96.5 WC.. / XO.. 03.. E02

22.0 3D.220.R.03 R 25 32 152 68 98 WC.. / XO.. 03.. E02

22.5 3D.225.R.03 R 25 32 153.5 69.5 99.5 WC.. / XO.. 03.. E02

23.0 3D.230.R.03 R 25 32 155 71 101 WC.. / XO.. 03.. E02

23.5 3D.235.R.03 R 25 32 156.5 72.5 102.5 WC.. / XO.. 03.. E02

24.0 3D.240.R.05 R 25 32 158 74 104 WC.. / XO.. 05.. E03

24.5 3D.245.R.05 R 25 32 159.5 75.5 105.5 WC.. / XO.. 05.. E03

25.0 3D.250.R.05 R 25 32 161 77 107 WC.. / XO.. 05.. E03

25.5 3D.255.R.05 R 25 32 162.5 78.5 108.5 WC.. / XO.. 05.. E03

26.0 3D.260.R.05 R 25 32 164 80 110 WC.. / XO.. 05.. E03

26.5 3D.265.R.05 R 25 32 165.5 81.5 111.5 WC.. / XO.. 05.. E03

27.0 3D.270.R.05 R 25 32 167 83 113 WC.. / XO.. 05.. E03

28.0 3D.280.R.05 R 25 32 170 86 116 WC.. / XO.. 05.. E03
29.0 3D.290.R.05 R 25 32 173 89 119 WC.. / XO.. 05.. E03

30.0 3D.300.R.06 R 32 49 180 92 122 WC.. / XO.. 06.. E04

Drilling / MaxiDrill Classic E01 D51 256680 8095010100 256924
56652
E02
E03
8095010200
24645
24647
E04
8095010500
