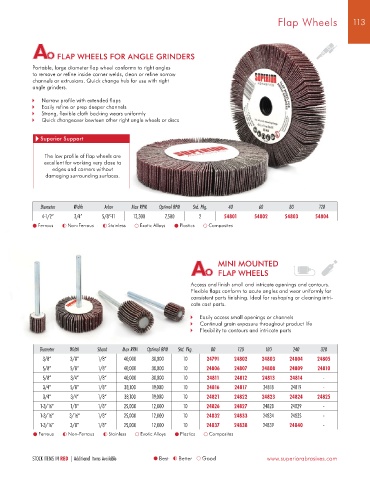

Flap Wheels 113

FLAP WHEELS FOR ANGLE GRINDERS
Portable, large diameter flap wheel conforms to right angles
to remove or refine inside corner welds, clean or refine narrow
channels or extrusions . Quick change hub for use with right
angle grinders .

Narrow profile with extended flaps
Easily refine or prep deeper channels
Strong, flexible cloth backing wears uniformly
Quick changeover bewteen other right angle wheels or discs

Superior Support

The low profile of flap wheels are
excellent for working very close to
edges and corners without
damaging surrounding surfaces .

Diameter Width Arbor Max RPM Optimal RPM Std. Pkg. 40 60 80 120
4-1/2” 3/4” 5/8”-11 13,300 7,500 2 54801 54802 54803 54804
Ferrous Non-Ferrous Stainless Exotic Alloys Plastics Composites

MINI MOUNTED
FLAP WHEELS

Access and finish small and intricate openings and contours .
Flexible flaps conform to acute angles and wear uniformly for
consistent parts finishing . Ideal for reshaping or cleaning intri-
cate cast parts .

Easily access small openings or channels
Continual grain exposure throughout product life
Flexibility to contours and intricate parts

Diameter Width Shank Max RPM Optimal RPM Std. Pkg. 80 120 180 240 320
3/8” 3/8” 1/8” 40,000 30,000 10 24791 24802 24803 24804 24805
5/8” 5/8” 1/8” 40,000 30,000 10 24806 24807 24808 24809 24810
5/8” 3/4” 1/8” 40,000 30,000 10 24811 24812 24813 24814 -
3/4” 5/8” 1/8” 38,100 19,000 10 24816 24817 24818 24819 -
3/4” 3/4” 1/8” 38,100 19,000 10 24821 24822 24823 24824 24825
1-3/16” 1/8” 1/8” 25,000 12,000 10 24826 24827 24828 24829 -
1-3/16” 3/16” 1/8” 25,000 12,000 10 24832 24833 24834 24835 -
1-3/16” 3/8” 1/8” 25,000 12,000 10 24837 24838 24839 24840 -
Ferrous Non-Ferrous Stainless Exotic Alloys Plastics Composites

STOCK ITEMS IN RED | Additional Items Available Best Better Good www .superiorabrasives .com
