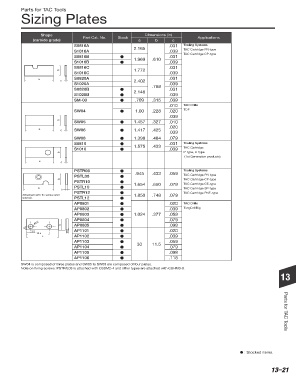

Parts for TAC Tools
Sizing Plates
Shape DImensions (in)
(carbide grade) Part Cat. No. Stock a b c Applications
S0816A 2.165 .031 Tooling Systems
S1016A .039 TAC Cartridge PN-type
TAC Cartridge CP-type
S0816B d 1.969 .610 .031
S1016B d .039
S0816C .031
b 1.772
S1016C .039
a c S0820A 2.402 .031
S1020A .768 .039
S0820B d 2.146 .031
S1020B d .039
SM-00 d .709 .315 .039
.010 TAC Drills
SW04 d 1.00 .228 .020 TDP
.039
b
SW05 d 1.457 .327 .010
.020
a
c SW06 d 1.417 .425 .039
SW08 d 1.398 .484 .079
S0810 d 1.575 .433 .031 Tooling Systems
S1010 d .039 TAC Cartridge
b P-type, C-type
(1st Generation products)
a
c
PSTR08 d .945 .433 .059 Tooling Systems
PSTL08 d TAC Cartridge PN-type
b TAC Cartridge CP-type
PSTR10 d 1.654 .650 .079 TAC Cartridge CE-type
a c PSTL10 d TAC Cartridge SP-type
PSTR12 d TAC Cartridge PNE-type
Attached with fix screw and 1.850 .748 .079
wrench. PSTL12 d
AP0801 d .020 TAC Drills
AP0802 d .039 TungDrillBig
AP0803 d 1.024 .377 .059
AP0804 d .079
ø3.5
b AP0805 d .098
d
3.5 c AP1101 d .020
18.5
a AP1102 d .039
AP1103 d 30 11.5 .059
AP1104 d .079
AP1105 d .098
AP1106 d .118
SW04 is composed of three plates and SW05 to SW08 are composed of four plates.
Note on fixing screws: PSTR/L08 is attached with CSSM2-4 and other types are attached with CSHM3-8.
13

Parts for TAC Tools

d : Stocked items.

13–21
