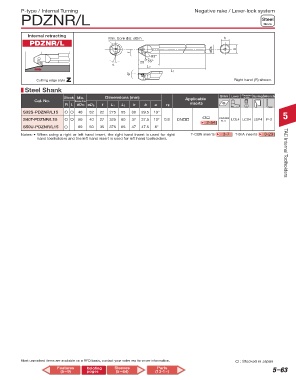

Page 378 - Tungaloy Catalog

P-type / Internal Turning
PDZNR/L Negative rake / Lever-lock system
Steel
Shank
Internal retracting Min. bore dia: øDm h
PDZNR/L
øDs b
f
93°
25 55°
α
L2
L1
6°
Cutting edge style Z Right hand (R) shown.
Steel Shank
Stock Min. Dimensions (mm) Applicable Shim Lever Clamping Spring Wrench
screw
Cat. No. bore dia.
R L øDm øDs f L1 L2 h b α rε inserts
S32S-PDZNR/L15 40 32 22 275 55 30 29.5 13° 5
LSZ42B
S40T-PDZNR/L15 50 40 27 325 60 37 37.5 10° 0.8 DNoo 43o R / L LCL4 LCS4 LSP4 P-3
2-54
S50U-PDZNR/L15 60 50 35 375 65 47 47.5 8°
Notes: • When using a right or left hand insert, the right hand insert is used for right T-CBN inserts 3-7 T-DIA inserts 3-23
hand toolholders and the left hand insert is used for left hand toolholders. TAC Internal Toolholders

 : Stocked items.
Most unmarked items are available on a RFQ basis, contact your sales rep for more information. : Stocked in Japan
