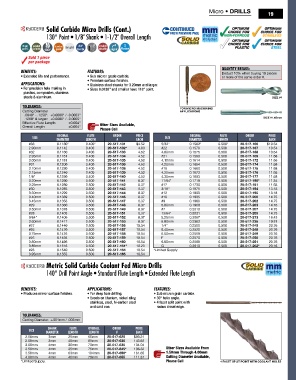

Page 21 - All Industrial Tool Supply | General Catalog

Micro • DRILLS
19

Solid Carbide Micro Drills (Cont.)
130° Point • 1/8" Shank • 1-1/2" Overall Length

Sold 1 piece
per package
QuanTiTy BreakS:
Benefits: feAtures: Deduct 10% when buying 10 pieces
• Extended life and performance. • Sub micron grade carbide. or more of the same order #.
• Premium surface finishes.
APPLiCAtiOns: • Stainless steel shanks for 3.20mm and larger.
• For precision hole making in • Sizes 0.0130" and smaller have 118° point.
plastics, composites, stainless
steels & aluminum. SIzE #4

ToleranCeS: FOR MICRO MACHINING
Cutting Diameter APPLICATIONS
.0040" - .1250": +0.0000" / -0.0003"
.1260" & larger: +0.0000" / -0.0005" SIzE #1.45mm
Effective Flute Length: ±0.004" Other Sizes Available,
Overall Length: ±0.004"
Please Call
DeCiMal FluTe orDer PriCe DeCiMal FluTe orDer PriCe
Size Size
DiaMeTer lengTh # eaCh DiaMeTer lengTh # eaCh
#33 0.1130" 0.400" 20-517-131 $4.52 5/32" 0.1562" 0.500" 20-517-166 $10.54
2.90mm 0.1142 0.400 20-517-132* 4.00 #22 0.1570 0.500 20-517-167 10.54
#32 0.1160 0.400 20-517-133 4.52 4.00mm 0.1575 0.500 20-517-168 10.54
2.95mm 0.1161 0.400 20-517-134 4.52 #21 0.1590 0.500 20-517-169 11.68
3.00mm 0.1181 0.400 20-517-135 4.52 4.10mm 0.1614 0.500 20-517-172 11.68
#31 0.1200 0.400 20-517-136 4.52 4.20mm 0.1654 0.500 20-517-174 11.68
3.10mm 0.1220 0.400 20-517-138 4.52 #19 0.1660 0.500 20-517-175 11.68
3.15mm 0.1240 0.400 20-517-139 4.52 4.25mm 0.1673 0.500 20-517-176 11.68
1/8" 0.1250 0.400 20-517-140 4.52 4.30mm 0.1693 0.500 20-517-177 11.68
3.20mm 0.1260 0.500 20-517-141 8.37 11/64" 0.1719 0.500 20-517-180* 11.34
3.25mm 0.1280 0.500 20-517-142 8.37 #17 0.1730 0.500 20-517-181 11.68
#30 0.1285 0.500 20-517-143 8.37 3/16" 0.1875 0.500 20-517-194 13.18
3.30mm 0.1299 0.500 20-517-144 8.37 #12 0.1890 0.500 20-517-195 13.18
3.40mm 0.1339 0.500 20-517-146 8.37 #10 0.1935 0.500 20-517-200 14.75
3.45mm 0.1358 0.500 20-517-147 8.37 #9 0.1960 0.500 20-517-202 14.75
#29 0.1360 0.500 20-517-148 8.37 5.00mm 0.1968 0.500 20-517-203 14.75
3.50mm 0.1378 0.500 20-517-149 8.37 #7 0.2010 0.500 20-517-207 14.75
#28 0.1405 0.500 20-517-151 8.37 13/64" 0.2031 0.500 20-517-209 14.75
9/64" 0.1406 0.500 20-517-152 8.37 5.25mm 0.2067 0.500 20-517-213 16.43
3.60mm 0.1417 0.500 20-517-153 8.37 6.00mm 0.2362 0.500 20-517-235 19.81
#27 0.1440 0.500 20-517-155 10.54 1/4" 0.2500 0.500 20-517-245 20.76
#26 0.1470 0.500 20-517-157 10.54 6.40mm 0.2520 0.500 20-517-248 20.76
3.75mm 0.1476 0.500 20-517-158 10.54 6.50mm 0.2559 0.500 20-517-249 20.76
#25 0.1495 0.500 20-517-159 10.54 F 0.2570 0.500 20-517-250 20.76
3.80mm 0.1496 0.500 20-517-160 10.54 6.60mm 0.2598 0.500 20-517-251 20.76
3.85mm 0.1516 0.500 20-517-161* 10.23 G 0.2610 0.500 20-517-252* 20.16
#23 0.1540 0.500 20-517-164 10.54 *Limited Supply.
3.95mm 0.1555 0.500 20-517-165 10.54
Metric Solid Carbide Coolant Fed Micro Drills
140° Drill Point Angle • Standard Flute Length • Extended Flute Length

Benefits: APPLiCAtiOns: feAtures:
• Produces mirror surface finishes. • For deep hole drilling. • Sub micron grain carbide.
• Excels on titanium, nickel alloy, • 30° helix angle.
stainless, steel, hi-carbon steel • 4 facet split point with
and cast iron. radius chisel edge.
ToleranCeS:
Cutting Diameter: +.001mm / .002mm
Shank FluTe overall orDer PriCe
Size
DiaMeTer lengTh lengTh # eaCh
2.50mm 3mm 25mm 66mm 20-517-625 $99.21
2.50mm 3mm 45mm 85mm 20-517-630 143.62
3.00mm 4mm 30mm 70mm 20-517-635 104.04
3.50mm 4mm 35mm 76mm 20-517-645* 106.32 Other Sizes Available From
3.50mm 4mm 63mm 104mm 20-517-650* 161.65 1.50mm Through 4.00mm
4.00mm 4mm 40mm 76mm 20-517-655 111.37 Cutting Diameter Available,
*Limited Supply. Please Call 4 FACET SPLIT POINT WITH COOLANT HOLES
