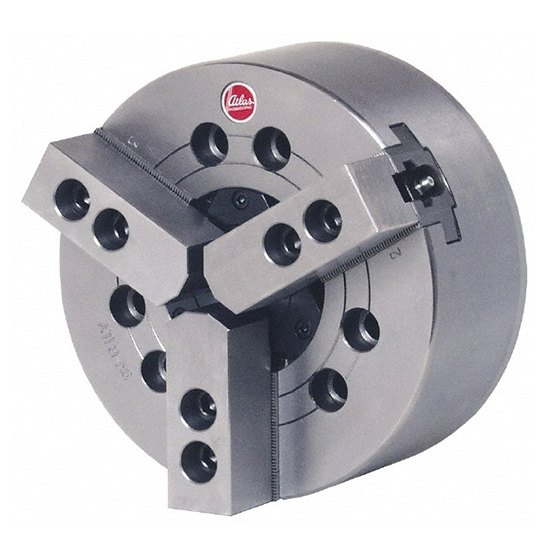

Pratt Burnerd America ATLB12-A8 | 12" King Bore Power Chuck A-8 Mount

$3,275.00
Ships:
From Partner Facility
Brand:
Pratt Burnerd America
Chuck Diameter (Inch):
12"
Number of Jaws:
3
Mount:
A-8
Through-Hole Diameter (Decimal Inch):
4.8000"
Through-Hole Diameter (mm):
122mm
Chuck Actuation Style:
Drawbar
Operation Type:
Hydraulic
Ships:
From Partner Facility
IsDiscontinued:
SKU:
50000101
UPC:
Weight:
144.00 LBS
Shipping:
Calculated at Checkout

Product Specifications
Weight 123 lbs
Brand Pratt Burnerd America
Chuck Size 12"
Thru-Hole Diameter (mm) 122mm
Thru-Hole Diameter (Inch) 4.80"
Mount A-8
Maximum Gripping Capacity (Inch) 12.40"
Minimum Gripping Capacity (Inch) 2.126"
Maximum Gripping Force (lb/f) 32,376 lb/f
Maximum Draw Bar Pull (lb/f) 12,363 lb/f
Jaw Stroke Diameter (Inch) 0.417"
Piston Stroke Length (inch) 0.905"
Maximum RPM 2800 RPM
