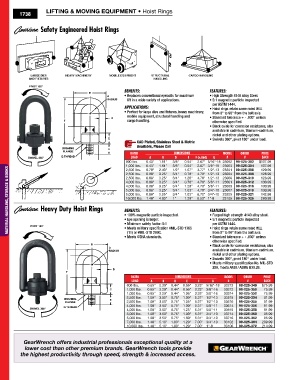

Page 1740 - All Industrial Tool Supply | General Catalog

LIFTING & MOVING EQUIPMENT • Hoist Rings
1738

Safety Engineered Hoist Rings

PIVOT 180°
Benefits: features:
B
A • Replaces conventional eyebolts for maximum • High Strength 4140 Alloy Steel.
RADIUS lift in a wide variety of applications. • 5:1 magnetic particle inspected
per ASTM 1444.
aPPLiCatiOns: • Hoist rings retain same rated WLL
• Perfect for large dies and fixtures, heavy machinery, from 0° to 90° from the bolt axis.
mobile equipment, structural handling and
D • Standard tolerance + - .030" unless
F cargo handling. otherwise specified.
• Black oxide for corrosion resistance, also
available in cadmium, titanium-cadmium,
nickel and other plating options.
C • Swivels 360°, pivot 180° under load.
CAD Plated, Stainless Steel & Metric
Available, Please Call
BUSHING E
FLANGE
RatED _________________DimEnSionS_________________ moDEL oRDER PRicE
G THREAD
SWIVEL 360° LoaD a B D E F (±.060) G # # EacH
800 Ibs. 0.43" 1.61" 3/8" 0.54" 2.67" 5/16"-18 23052 99-025-302 $107.99
1,000 Ibs. 0.43" 1.61" 3/8" 0.54" 2.67" 3/8"-16 23053 99-025-304 107.99
material Handling, Storage & BookS Heavy Duty Hoist Rings Benefits: 0.88" 3.25" 3/4" 1.28" 4.78" 5/8"-11 23003 99-025-316 130.99
99-025-306
3.77" 1/2"-13
2,500 Ibs.
129.99
23301
1.07"
0.70"
1/2"
2.40"
0.88"
4.78" 1/2"-13
0.78"
3.25"
3/4"
2,500 Ibs.
23004
99-025-308
128.99
0.88"
1.28"
3/4"
23006
3.25"
2,500 Ibs.
4.78" 1/2"-13
128.99
99-025-310
130.99
3.25"
99-025-312
0.88"
4.78" 5/8"-11
0.78"
23001
4,000 Ibs.
3/4"
4,000 Ibs.
99-025-318
4.78" 3/4"-10
3.25"
3/4"
23007
1.03"
130.99
5,000 Ibs.
0.88"
1.03"
3/4"
99-025-321
6.72" 3/4"-10
5,000 Ibs.
23325
142.99
0.88"
3.25"
10,000 Ibs.
1"
4.93"
6.52" 1"-8
1.40"
1.29"
23105
99-025-326
280.99
features:
• Forged high strength 4140 alloy steel.
• 100% magnetic particle inspected.
• Eye opening is larger.
• Minimum safety factor: 5:1
per ASTM 1444.
PIVOT 180°
• Meets military specification #MIL-STD 1365
• Hoist rings retain same rated WLL
(11) or #MIL-STD 209C.
from 0° to 90° from the bolt axis.
• Meets OSHA standards. • 5:1 magnetic particle inspected
• Standard tolerance + - .030" unless
otherwise specified.
B • Black oxide for corrosion resistance, also
A
RADIUS available in cadmium, titanium-cadmium,
nickel and other plating options.
• Swivels 360°, pivot 180° under load.
• Meets military specification No. MIL-STD
209, meets ANSI / ASME B30.26.
D
F
RatED _______________DimEnSionS_______________ moDEL oRDER PRicE
LoaD a B D E F G # # EacH
800 Ibs. 0.65" 2.29" 0.44" 0.56" 3.23" 5/16"-18 33212 99-025-349 $75.99
C 1,000 Ibs. 0.65" 2.29" 0.44" 0.56" 3.23" 3/8"-16 33312 99-025-350 75.99
1,000 Ibs. 0.65" 2.29" 0.44" 1.06" 3.23" 3/8"-16 33314 99-025-352 75.99
2,500 Ibs. 1.00" 3.50" 0.75" 1.00" 5.31" 1/2"-13 33515 99-025-354 91.99
BUSHING E
FLANGE 2,500 Ibs. 1.00" 3.50" 0.75" 1.25" 5.31" 1/2"-13 33516 99-025-355 91.99
G THREAD 4,000 Ibs. 1.00" 3.50" 0.75" 1.00" 5.31" 5/8"-11 33614 99-025-356 91.99
SWIVEL 360° 4,000 Ibs. 1.00" 3.50" 0.75" 1.25" 5.31" 5/8"-11 33615 99-025-358 91.99
5,000 Ibs. 1.00" 3.50" 0.75" 1.00" 5.31" 3/4"-10 33714 99-025-360 95.99
5,000 Ibs. 1.00" 3.50" 0.75" 1.50" 5.31" 3/4"-10 33716 99-025-362 95.99
7,000 Ibs. 1.40" 5.10" 1.00" 1.20" 7.00" 3/4"-10 33102 99-025-364 209.99
10,000 Ibs. 1.40" 5.10" 1.00" 1.20" 7.00" 1"-8 33106 99-025-372 214.99
