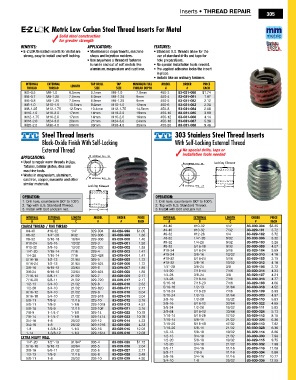

Page 307 - All Industrial Tool Supply | General Catalog

Inserts • THREAD REPAIR
305

Metric Low Carbon Steel Thread Inserts For Metal

Solid steel construction
for greater strength
BeneFits: aPPLiCatiOns: Features:
• E-Z LOK threaded inserts for metal are • Maintenance departments, machine • Standard O.D. threads allow for the
strong, easy to install and self locking. shops and injection molders. use of standard drills and taps for
• Use anywhere a threaded fastener hole preparations.
is run in and out of soft metals like • No special installation tools needed.
aluminum, magnesium and cast iron. • Pre-applied adhesive locks the insert
in place.
• Installs like an ordinary fastener.
InTernaL exTernaL LengTh Tap drILL Tap MInIMuM FuLL MOdeL Order prICe
Thread Thread SIze SIze Thread depTh # # eaCh
M3-0.5 M6-1.0 6.5mm 5.1mm M6-1.0 7.8mm 450-3 83-031-080 $1.74
M4-0.7 M8-1.25 7.5mm 6.9mm M8-1.25 9mm 450-4 83-031-081 1.87
M5-0.8 M8-1.25 7.5mm 6.9mm M8-1.25 9mm 450-5 83-031-082 2.12
M6-1.0 M10-1.5 10.5mm 8.6mm M10-1.5 12mm 450-6 83-031-083 2.38
M8-1.25 M12-1.75 12.5mm 10.4mm M12-1.75 14.5mm 450-8 83-031-084 2.68
M10-1.5 M16-2.0 17mm 14mm M16-2.0 19mm 450-10 83-031-085 3.69
M12-1.75 M16-2.0 17mm 14mm M16-2.0 19mm 450-12 83-031-086 4.14
M16-2.0 M24-3.0 20mm 21mm M24-3.0 24mm 450-16 83-031-087 5.38
M20-2.5 M36-4.0 30mm 33mm M36-4.0 35mm 450-20 83-031-088 9.46
Steel Thread Inserts 303 Stainless Steel Thread Inserts
Black-Oxide Finish With Self-Locking With Self-Locking External Thread
External Thread No special drills, taps or
aPPLiCatiOns: installation tools needed
• Used to repair worn threads in jigs,
fixtures, bolster plates, dies and
machine tools.
• Works in magnesium, aluminum,
cast iron, copper, masonite and other
similar materials.

OperaTIOn: OperaTIOn:
1. Drill hole, countersink (90º to 100º). 1. Drill hole, countersink (90º to 100º).
2. Tap with U.S. Standard Thread. 2. Tap with U.S. Standard Thread.
3. Install with bolt and jam nut. 3. Install with bolt and jam nut.

InTernaL exTernaL LengTh MOdeL Order prICe InTernaL exTernaL LengTh Order prICe
a B C # # eaCh a B C # eaCh
COarSe Thread / FIne Thread #4-40 #10-32 1/4" 83-030-304 $3.25
#4-40 #10-32 1/4" 329-004 83-028-998 $1.05 #4-40 #10-32 7/32 83-029-101 3.72
#6-32 1/4"-20 9/32 329-006 83-028-999 1.30 #6-32 #12-28 1/4 83-029-102 3.72
#8-32 5/16-18 19/64 329-008 83-029-000 1.40 #6-32 1/4"-20 9/32 83-030-306 3.32
#10-24 3/8-16 13/32 329-3 83-029-001 1.52 #8-32 1/4-28 9/32 83-029-103 3.28
#10-32 3/8-16 13/32 329-332 83-029-002 1.39 #8-32 5/16-18 9/32 83-030-308 4.07
1/4"-20 7/16-14 7/16 329-4 83-029-003 1.47 #10-24 5/16-24 5/16 83-029-104 3.69
1/4-28 7/16-14 7/16 329-428 83-029-004 1.47 #10-24 3/8-16 13/32 83-030-310 4.10
5/16-18 1/2-13 31/64 329-5 83-029-005 1.72 #10-32 5/16-24 5/16 83-029-105 3.15
5/16-24 1/2-13 31/64 329-524 83-029-006 1.72 #10-32 3/8-16 13/32 83-030-312 4.10
3/8-16 9/16-12 33/64 329-6 83-029-007 1.85 1/4"-20 3/8-24 3/8 83-029-106 3.72
3/8-24 9/16-12 33/64 329-624 83-029-008 1.85 1/4-20 7/16-14 7/16 83-030-314 4.33
7/16-14 5/8-11 21/32 329-7 83-029-009 2.17 1/4-28 3/8-24 3/8 83-029-107 4.21
7/16-20 5/8-11 21/32 329-720 83-029-017 2.17 1/4-28 7/16-14 7/16 83-030-316 4.77
1/2-13 3/4-10 21/32 329-8 83-029-010 2.52 5/16-18 7/16-20 7/16 83-029-108 4.06
1/2-20 3/4-10 21/32 329-820 83-029-011 2.77 5/16-18 1/2-13 31/64 83-030-318 4.52
9/16-12 3/4-10 21/32 329-9 83-029-018 3.04 5/16-24 7/16-20 7/16 83-029-109 3.93
9/16-18 3/4-10 21/32 329-918 83-029-019 3.04 5/16-24 1/2-13 31/64 83-030-320 4.97
5/8-11 7/8-9 11/16 329-10 83-029-012 3.16 3/8-16 1/2-20 15/32 83-029-110 5.83
5/8-11 7/8-9 1-1/8 329-1018 83-029-013 4.57 3/8-16 9/16-12 33/64 83-030-322 4.65
5/8-18 7/8-9 11/16 329-10F 83-029-021 3.16 3/8-24 1/2-20 15/32 83-029-111 5.83
7/8-9 1-1/4-7 1-1/8 329-14 83-029-022 10.78 3/8-24 9/16-12 33/64 83-030-324 5.13
7/8-14 1-1/4-7 1-1/8 329-1414 83-029-023 10.78 7/16-14 9/16-28 17/32 83-029-112 8.15
3/4-10 1-8 25/32 329-12 83-029-014 4.33 7/16-14 5/8-11 21/32 83-030-326 6.36
3/4-16 1-8 25/32 329-1216 83-029-020 4.33 7/16-20 9/16-18 17/32 83-029-113 7.62
1-8 1-3/8-12 1-1/4 329-16 83-029-015 12.03 7/16-20 5/8-11 21/32 83-030-328 6.36
1-14 1-3/8-12 1-1/4 329-1614 83-029-016 12.03 1/2-13 5/8-18 19/32 83-029-114 8.86
exTra heavy WaLL 1/2-13 3/4-10 21/32 83-030-330 7.98
1/4"-20 1/2"-13 31/64" 335-4 83-029-025 $1.72 1/2-20 5/8-18 19/32 83-029-115 9.75
21/32
3/4-10
1/2-20
7.98
83-030-332
5/16-18 9/16-12 33/64 335-5 83-029-026 2.04 5/8-11 3/4-16 11/16 83-029-116 11.09
3/8-16 5/8-11 21/32 335-6 83-029-027 2.17 5/8-11 7/8-9 11/16 83-030-334 8.88
1/2-13 7/8-9 11/16 335-8 83-029-028 3.48
5/8-11 1-8 25/32 335-10 83-029-029 4.30 5/8-18 3/4-16 11/16 83-029-117 10.77
3/4-10 1-8 25/32 83-030-336 12.55
