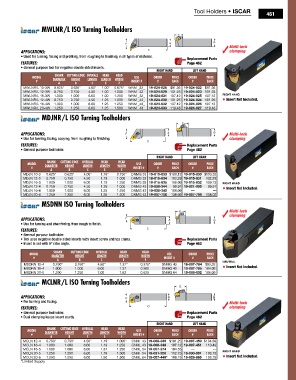

Tool Holders • ISCAR
461

MWLNR/L ISO Turning Toolholders
E E

F F A A B B
Multi-lock
APPLICATIONS: C C clamping
• Used for turning, facing and profiling, from roughing to finishing in all types of material. Replacement Parts
FeATureS: Page 462
• General purpose tool for negative double sided inserts.
RIghT haND LefT haND
ShaNk CuTTINg eDge OveRaLL heaD heaD
MODeL DIaMeTeR heIghT LeNgTh LeNgTh WIDTh uSe ORDeR PRICe ORDeR PRICe
# INSeRT # # eaCh # eaCh
a B C e f
MWLNR/L 10-3W 0.625" 0.625" 4.00" 1.00" 0.875" WNM _32_ 19-024-028 $91.36 19-024-022 $91.36
MWLNR/L 12-3W 0.750 0.750 4.50 1.00 1.000 WNM _32_ 19-024-029 101.25 19-024-023 101.25
MWLNR/L 16-3W 1.000 1.000 6.00 1.00 1.250 WNM _32_ 19-024-031 107.12 19-024-025 107.12 RIGHT HAND
MWLNR/L 12-4W 0.750 0.750 4.50 1.25 1.000 WNM _43_ 19-024-030 101.25 19-024-024 101.25 ♦ Insert Not Included.
MWLNR/L 16-4W 1.000 1.000 6.00 1.25 1.250 WNM _43_ 19-024-032 107.12 19-024-026 107.12
MWLNR/L 20-4W 1.250 1.250 6.00 1.25 1.500 WNM _43_ 19-024-033 119.48 19-024-027 119.48
MDJNR/L ISO Turning Toolholders
E

APPLICATIONS: F A B Multi-lock
• Use for turning, facing, copying, from roughing to finishing. clamping
C
FeATureS: Replacement Parts
• General purpose toolholder. Page 462

RIghT haND LefT haND
ShaNk CuTTINg eDge OveRaLL heaD heaD
MODeL DIaMeTeR heIghT LeNgTh LeNgTh WIDTh uSe ORDeR PRICe ORDeR PRICe
# INSeRT # # eaCh # eaCh
a B C e f
MDJN 10-3 0.625" 0.625" 4.00" 1.19" 0.750" DNMG 33 19-015-833 $100.12 19-015-830 $103.32
MDJN 12-3 0.750 0.750 4.50 1.19 1.000 DNMG 33 19-015-834 102.28 19-015-831 102.28
MDJN 16-3 1.000 1.000 6.00 1.19 1.250 DNMG 33 19-015-835 106.09 19-015-832 109.13 RIGHT HAND
MDJN 12-4 0.750 0.750 4.50 1.25 1.000 DNMG 43 19-008-344 99.91 19-021-995 99.91 ♦ Insert Not Included.
MDJN 16-4 1.000 1.000 6.00 1.25 1.250 DNMG 43 19-008-345 106.09 — —
MDJN 20-4 1.250 1.250 6.00 1.25 1.500 DNMG 43 19-007-708 138.02 19-007-709 138.02
MSDNN ISO Turning Toolholders
E Multi-lock
clamping
APPLICATIONS: F A B
• Use for turning and chamfering, from rough to finish.
FeATureS: C
• General purpose toolholder.
• Tool uses negative double sided inserts with insert screw and top clamp. Replacement Parts
• Insert is set with 6° rake angle. Page 462
ShaNk CuTTINg eDge OveRaLL heaD heaD
MODeL DIaMeTeR heIghT LeNgTh LeNgTh WIDTh uSe ORDeR PRICe
# INSeRT # # eaCh
a B C e f NEUTRAL
MSDNN 12-4 0.750" 0.750" 4.50" 1.37" 0.375" SNMG 43 19-007-784 $93.32
MSDNN 16-4 1.000 1.000 6.00 1.37 0.500 SNMG 43 19-007-785 104.03 ♦ Insert Not Included.
MSDNN 20-6 1.250 1.250 7.00 1.62 0.625 SNMG 64 19-008-052 106.09
MCLNR/L ISO Turning Toolholders
E

APPLICATIONS: F A B
• For turning and facing. Multi-lock
FeATureS: C clamping
• General purpose toolholder. Replacement Parts
• Dual clamping keeps insert sturdy. Page 462

RIghT haND LefT haND
ShaNk CuTTINg eDge OveRaLL heaD heaD
MODeL DIaMeTeR heIghT LeNgTh LeNgTh WIDTh uSe ORDeR PRICe ORDeR PRICe
# INSeRT # # eaCh # eaCh
a B C e f
MCLN 12-4 0.750" 0.750" 4.50" 1.19" 1.000" CNM_ 43 19-008-336 $101.25 19-007-450 $104.59
MCLN 16-4 1.000 1.000 6.00 1.19 1.250 CNM_ 43 19-008-338 107.12 19-007-451 110.49
MCLN 16-5 1.000 1.000 6.00 1.37 1.250 CNM_ 54 19-007-274 104.55 — — RIGHT HAND
MCLN 20-5 1.250 1.250 6.00 1.19 1.500 CNM_ 54 19-031-200 112.75 19-030-891 108.15
MCLN 20-6 1.250 1.250 6.00 1.50 1.500 CNM_ 64 19-007-449* 108.15 19-028-866 108.15 ♦ Insert Not Included.
*Limited Supply.
