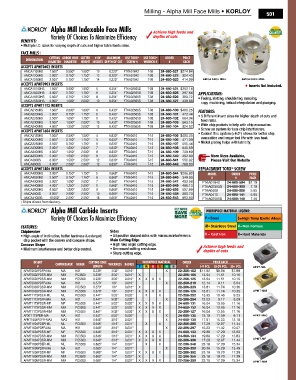

Page 503 - All Industrial Tool Supply | General Catalog

Milling - Alpha Mill Face Mills • KORLOY
501

Alpha Mill Indexable Face Mills Achieve high feeds and
Variety Of Choices To Maximize Efficiency depths of cuts
Benefits:
• Multiple I.C. sizes for varying depth of cuts and higher table feeds rates.
FACe MIlls†
CuttIng Arbor Hole Cutter # oF MAxIMuM use torx ® use torx ® orDer prICe
DesIgnAtIon
DIAMeter DIAMeter HeIgHt Inserts DeptH oF Cut sCrew # wrenCH # # eACH
ACCepts ApMt0602 Inserts
AMCA1150HS 1.500" 0.500" 1.500" 10 0.220" FTKA01842 T-06 24-680-521 $274.84
AMCA1200HS 2.000" 0.750" 1.750" 12 0.220" FTKA01842 T-06 24-680-522 324.43
AMCA1250HS 2.500" 0.750" 1.750" 14 0.220" FTKA01842 T-06 24-680-523 414.99 AMCA FACe MiLL AMCA FACe MiLL
ACCepts ApMt0903 Inserts ♦ Inserts Not Included.
AMCA15150HS 1.500" 0.500" 1.500" 5 0.354" FTKA02565S T-08 24-680-524 $252.14
AMCA15200HS 2.000" 0.750" 1.750" 6 0.354" FTKA02565S T-08 24-680-525 297.64 APPLiCAtiOns:
AMCA15250HS 2.500" 0.750" 1.750" 8 0.354" FTKA02565S T-08 24-680-526 380.72 • Facing, slotting, shouldering, ramping,
AMCA15300HS 3.000" 1.000" 2.000" 10 0.354" FTKA02565S T-08 24-680-527 438.68 copy machining, helical interpolation and plunging.
ACCepts ApMt11t3 Inserts
AMCA2150HS 1.500" 0.500" 1.500" 5 0.433" FTKA02565S T-08 24-680-100 $400.25 feAtures:
AMCA2200HS 2.000" 0.750" 1.750" 6 0.433" FTKA02565S T-08 24-680-101 472.44 • 5 Different insert sizes for higher depth of cuts and
AMCA2250HS 2.500" 1.000" 1.750" 8 0.433" FTKA02565S T-08 24-680-102 604.34 feed rates.
AMCA2300HS 3.000" 1.000" 2.000" 10 0.433" FTKA02565S T-08 24-680-103 663.15
AMCA2400HS 4.000" 1.250" 2.000" 12 0.433" FTKA02565S T-08 24-680-104 824.82 • Wide chip pockets to help with chip evacuation.
ACCepts ApMt1604 Inserts • Screw on system for less chip interference.
• Coolant thru system (>6.0") allows for better chip
AMCA3150HS 1.500" 0.500" 1.500" 4 0.630" FTKA0410 T-15 24-680-105 $400.25 evacuation and longer tool life with less heat.
AMCA3200HS 2.000" 0.750" 1.750" 5 0.630" FTKA0410 T-15 24-680-106 471.09
AMCA3250HS 2.500" 0.750" 1.750" 6 0.630" FTKA0410 T-15 24-680-107 555.44 • Nickel plating helps with lubricity.
AMCA3300HS 3.000" 1.000" 2.000" 7 0.630" FTKA0410 T-15 24-680-108 640.59
AMCA3400HS 4.000" 1.250" 2.000" 8 0.630" FTKA0410 T-15 24-680-109 739.89
AMCA3500HS 5.000" 1.500" 2.500" 9 0.630" FTKA0410 T-15 24-680-540 492.60 More Sizes Available,
AMCA3600S 6.000" 1.500" 2.500" 12 0.630" FTKA0410 T-15 24-680-541 550.92 Please Visit Our Website
AMCA3800S 8.000" 2.500" 2.500" 12 0.630" FTKA0410 T-15 24-680-542 768.60
ACCepts ApMt1806 Inserts replACeMent torx sCrew
®
AMCA4200HS 2.000" 0.750" 1.750" 5 0.669" FTKA0410 T-15 24-680-544 $296.80 MoDel orDer prICe
AMCA4250HS 2.500" 0.750" 1.750" 6 0.669" FTKA0410 T-15 24-680-545 349.93 # # eACH
AMCA4300HS 3.000" 1.000" 2.000" 7 0.669" FTKA0410 T-15 24-680-547 403.58 FTKA01842 24-680-584 $7.19
AMCA4400HS 4.000" 1.250" 2.000" 8 0.669" FTKA0410 T-15 24-680-549 466.13 FTKA02555S 24-680-585 7.19
AMCA4500HS 5.000" 1.500" 2.500" 9 0.669" FTKA0410 T-15 24-680-556 507.89 FTKA0408 24-680-586 5.95
AMCA4800S 8.000" 2.500" 2.500" 10 0.669" FTKA0410 T-15 24-680-558 380.70 FTKA0410 24-680-141 5.95
AMCA41000S 10.000" 2.500" 2.500" 18 0.669" FTKA0410 T-15 24-680-543 993.60 FTKA02565S 24-680-140 7.40
†Ships direct from factory.
Alpha Mill Carbide Inserts
Variety Of Choices To Maximize Efficiency

feAtures:
Chipbreaker Sides
• High angle of inclination, better hardness & enlarged • All positive shaped sides with minimum interference.
chip pocket with the convex and concave shape. Main Cutting Edge
Concave Shape • High rake angle cutting edge. Achieve high feeds and
• Minimum interference and better chip control. • Decreased cutting resistance. depths of cuts
• Sharp cutting edge.
Insert CHIpbreAker grADe CuttIng eDge tHICkness rADIus workpIeCe MAterIAl orDer ________prICe eACH________
# lengtH p M k s n H # 1-9 pCs. 10-29 pCs. 30+ pCs. APXT-MA
APMT0602PDFR-MA MA H01 0.236" 3/32" 0.016" X 22-286-182 $11.92 $8.94 $7.89
APMT0602PDSR-MM MM PC3500 0.236" 3/32" 0.016" X 22-286-186 13.54 11.51 10.16
APMT0602PDSR-MM MM PC5300 0.236" 3/32" 0.016" X X X X 22-286-125 13.54 11.51 10.15
APMT0903PDFR-MA MA H01 0.370" 1/8" 0.016" X 22-286-219 12.14 9.11 8.04
APMT0903PDSR-MM MM PC3500 0.370" 1/8" 0.016" X 22-286-223 13.81 11.74 10.36
APMT0903PDSR-MM MM PC5300 0.370" 1/8" 0.016" X X X X 22-286-126 13.81 11.74 10.35 APMT-MM
APMT11T3PDER-ML ML PC5300 0.441" 5/32" 0.020" X X 22-286-252 13.95 10.46 9.23
APMT11T3PDFR-MA MA H01 0.441" 5/32" 0.020" X 22-286-254 12.23 9.17 8.09
APMT11T3PDSR-MF MF PC5300 0.441" 5/32" 0.020" X X X X 24-680-131 16.04 13.95 11.16
APMT11T3PDSR-MM MM PC3500 0.441" 5/32" 0.020" X X X X 24-680-132 16.04 13.95 11.16
APMT11T3PDSR-MM MM PC5300 0.441" 5/32" 0.020" X X X X 22-286-127 16.04 13.95 11.16
APXT11T3PDR-MA MA H01 0.441" 5/32" 0.020" X 24-680-135 13.10 11.39 9.11 APKT-MA3
APKT1604PDFR-MA3 MA3 H01 0.646" 3/16" 0.031" X 24-680-130 17.51 15.23 12.18
APMT1604PDER-ML ML PC5300 0.646" 3/16" 0.031" X X 22-286-295 17.29 12.97 11.44
APMT1604PDFR-MA MA H01 0.646" 3/16" 0.031" X 22-286-297 15.23 11.42 10.07
APMT1604PDSR-MF MF PC5300 0.646" 3/16" 0.031" X X X X 24-680-133 19.88 17.29 13.83
APMT1604PDSR-MM MM PC3500 0.646" 3/16" 0.031" X X X X 24-680-134 19.88 17.29 13.83
APMT1604PDSR-MM MM PC5300 0.646" 3/16" 0.031" X X X X 22-286-306 17.29 12.97 11.44 APMT-MF
APMT1806PDER-ML ML PC5300 0.685" 1/4" 0.031" X X 22-286-348 23.18 17.39 15.34
APMT1806PDFR-MA MA H01 0.685" 1/4" 0.031" X 22-286-350 20.39 15.29 13.49
APMT1806PDSR-MF MF PC5300 0.685" 1/4" 0.031" X X X X 22-286-352 23.18 19.70 17.39
APMT1806PDSR-MM MM PC3500 0.685" 1/4" 0.031" X 22-286-356 23.18 19.70 17.39
APMT1806PDSR-MM MM PC5300 0.685" 1/4" 0.031" X X X X 22-286-359 23.18 17.39 15.34 APMT-MM
