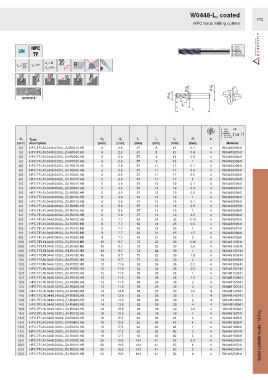

Page 1069 - Ceratizit Catalog

W0448-L, coated
F72
HPC torus milling cutters

Ø d 3 Ø d A
Ø d 1
SCPP215
l 2
l 3
l 1

HB
d 1 Type, d A d 3 l 1 l 2 l 3 R z
[mm] description [mm] [mm] [mm] [mm] [mm] [mm] Material
3.0 HPC-TF.UN.0448.0300.L.Z4.R0010.HB 6 2.8 57 8 13 0.1 4 W0448030641
3.0 HPC-TF.UN.0448.0300.L.Z4.R0040.HB 6 2.8 57 8 13 0.4 4 W0448030741
3.0 HPC-TF.UN.0448.0300.L.Z4.R0050.HB 6 2.8 57 8 13 0.5 4 W0448030841
3.0 HPC-TF.UN.0448.0300.L.Z4.R0100.HB 6 2.8 57 8 13 1 4 W0448030941
4.0 HPC-TF.UN.0448.0400.L.Z4.R0010.HB 6 3.8 57 11 17 0.1 4 W0448040641
4.0 HPC-TF.UN.0448.0400.L.Z4.R0040.HB 6 3.8 57 11 17 0.4 4 W0448040741
4.0 HPC-TF.UN.0448.0400.L.Z4.R0050.HB 6 3.8 57 11 17 0.5 4 W0448040841
4.0 HPC-TF.UN.0448.0400.L.Z4.R0100.HB 6 3.8 57 11 17 1 4 W0448040941
5.0 HPC-TF.UN.0448.0500.L.Z4.R0010.HB 6 4.8 57 13 19 0.1 4 W0448050641
5.0 HPC-TF.UN.0448.0500.L.Z4.R0040.HB 6 4.8 57 13 19 0.4 4 W0448050741
5.0 HPC-TF.UN.0448.0500.L.Z4.R0050.HB 6 4.8 57 13 19 0.5 4 W0448050841
5.0 HPC-TF.UN.0448.0500.L.Z4.R0100.HB 6 4.8 57 13 19 1 4 W0448050941
6.0 HPC-TF.UN.0448.0600.L.Z4.R0010.HB 6 5.8 57 13 19 0.1 4 W0448060641
6.0 HPC-TF.UN.0448.0600.L.Z4.R0050.HB 6 5.8 57 13 19 0.5 4 W0448060741
6.0 HPC-TF.UN.0448.0600.L.Z4.R0100.HB 6 5.8 57 13 19 1 4 W0448060841
6.0 HPC-TF.UN.0448.0600.L.Z4.R0150.HB 6 5.8 57 13 19 1.5 4 W0448060941
8.0 HPC-TF.UN.0448.0800.L.Z4.R0015.HB 8 7.7 63 21 25 0.15 4 W0448080541
8.0 HPC-TF.UN.0448.0800.L.Z4.R0050.HB 8 7.7 63 21 25 0.5 4 W0448080641
8.0 HPC-TF.UN.0448.0800.L.Z4.R0100.HB 8 7.7 63 21 25 1 4 W0448080741
8.0 HPC-TF.UN.0448.0800.L.Z4.R0150.HB 8 7.7 63 21 25 1.5 4 W0448080841
8.0 HPC-TF.UN.0448.0800.L.Z4.R0200.HB 8 7.7 63 21 25 2 4 W0448080941
10.0 HPC-TF.UN.0448.1000.L.Z4.R0015.HB 10 9.7 72 22 30 0.15 4 W0448100541
10.0 HPC-TF.UN.0448.1000.L.Z4.R0050.HB 10 9.7 72 22 30 0.5 4 W0448100641
10.0 HPC-TF.UN.0448.1000.L.Z4.R0100.HB 10 9.7 72 22 30 1 4 W0448100741
10.0 HPC-TF.UN.0448.1000.L.Z4.R0150.HB 10 9.7 72 22 30 1.5 4 W0448100841
10.0 HPC-TF.UN.0448.1000.L.Z4.R0200.HB 10 9.7 72 22 30 2 4 W0448100941
12.0 HPC-TF.UN.0448.1200.L.Z4.R0020.HB 12 11.6 83 26 36 0.2 4 W0448120641
12.0 HPC-TF.UN.0448.1200.L.Z4.R0050.HB 12 11.6 83 26 36 0.5 4 W0448120741
12.0 HPC-TF.UN.0448.1200.L.Z4.R0100.HB 12 11.6 83 26 36 1 4 W0448120841
12.0 HPC-TF.UN.0448.1200.L.Z4.R0150.HB 12 11.6 83 26 36 1.5 4 W0448120941
12.0 HPC-TF.UN.0448.1200.L.Z4.R0200.HB 12 11.6 83 26 36 2 4 W0448120A41
12.0 HPC-TF.UN.0448.1200.L.Z4.R0400.HB 12 11.6 83 26 36 4 4 W0448120C41
14.0 HPC-TF.UN.0448.1400.L.Z4.R0030.HB 14 13.6 83 26 36 0.3 4 W0448140641
14.0 HPC-TF.UN.0448.1400.L.Z4.R0100.HB 14 13.6 83 26 36 1 4 W0448140741
14.0 HPC-TF.UN.0448.1400.L.Z4.R0200.HB 14 13.6 83 26 36 2 4 W0448140841
14.0 HPC-TF.UN.0448.1400.L.Z4.R0400.HB 14 13.6 83 26 36 4 4 W0448140941
16.0 HPC-TF.UN.0448.1600.L.Z4.R0030.HB 16 15.5 92 36 42 0.3 4 W0448160641
16.0 HPC-TF.UN.0448.1600.L.Z4.R0100.HB 16 15.5 92 36 42 1 4 W0448160741
16.0 HPC-TF.UN.0448.1600.L.Z4.R0200.HB 16 15.5 92 36 42 2 4 W0448160841
16.0 HPC-TF.UN.0448.1600.L.Z4.R0400.HB 16 15.5 92 36 42 4 4 W0448160941
18.0 HPC-TF.UN.0448.1800.L.Z4.R0100.HB 18 17.5 92 36 42 1 4 W0448180641
18.0 HPC-TF.UN.0448.1800.L.Z4.R0200.HB 18 17.5 92 36 42 2 4 W0448180741
18.0 HPC-TF.UN.0448.1800.L.Z4.R0400.HB 18 17.5 92 36 42 4 4 W0448180841 Solid carbide tools / Milling
