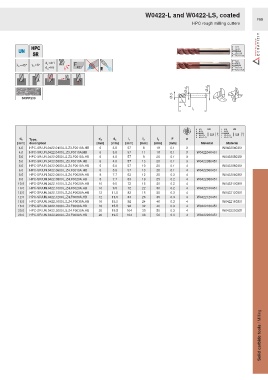

W0422-L and W0422-LS, coated
F68
HPC rough milling cutters

Ø d 3 Ø d A
Ø d 1
SCPP230
l 2
l 3
l 1

HB HB
d 1 Type, d A d 3 l 1 l 2 l 3 F z
[mm] description [mm] [mm] [mm] [mm] [mm] [mm] Material Material
4.0 HPC-SR.UN.0422.0400.LS.Z3.F0010A.HB 6 3.8 57 8 18 0.1 3 W0422040351
4.0 HPC-SR.UN.0422.0400.L.Z3.F0010A.HB 6 3.8 57 11 18 0.1 3 W0422040451
5.0 HPC-SR.UN.0422.0500.LS.Z3.F0010A.HB 6 4.8 57 9 20 0.1 3 W0422050351
5.0 HPC-SR.UN.0422.0500.L.Z3.F0010A.HB 6 4.8 57 13 20 0.1 3 W0422050451
6.0 HPC-SR.UN.0422.0600.LS.Z4.F0010A.HB 6 5.8 57 10 20 0.1 4 W0422060351
6.0 HPC-SR.UN.0422.0600.L.Z4.F0010A.HB 6 5.8 57 13 20 0.1 4 W0422060451
8.0 HPC-SR.UN.0422.0800.LS.Z4.F0020A.HB 8 7.7 63 12 25 0.2 4 W0422080351
8.0 HPC-SR.UN.0422.0800.L.Z4.F0020A.HB 8 7.7 63 19 25 0.2 4 W0422080451
10.0 HPC-SR.UN.0422.1000.LS.Z4.F0020A.HB 10 9.5 72 15 30 0.2 4 W0422100351
10.0 HPC-SR.UN.0422.1000.L.Z4.F0020A.HB 10 9.5 72 22 30 0.2 4 W0422100451
12.0 HPC-SR.UN.0422.1200.LS.Z4.F0030A.HB 12 11.5 83 18 35 0.3 4 W0422120351
12.0 HPC-SR.UN.0422.1200.L.Z4.F0030A.HB 12 11.5 83 26 35 0.3 4 W0422120451
16.0 HPC-SR.UN.0422.1600.LS.Z4.F0030A.HB 16 15.5 92 24 40 0.3 4 W0422160351
16.0 HPC-SR.UN.0422.1600.L.Z4.F0030A.HB 16 15.5 92 32 40 0.3 4 W0422160451
20.0 HPC-SR.UN.0422.2000.LS.Z4.F0030A.HB 20 19.5 104 30 50 0.3 4 W0422200351
20.0 HPC-SR.UN.0422.2000.L.Z4.F0030A.HB 20 19.5 104 38 50 0.3 4 W0422200451

Solid carbide tools / Milling
