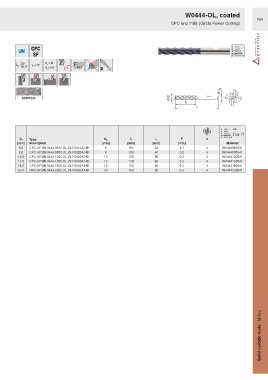

Page 1061 - Ceratizit Catalog

W0444-OL, coated
F64
CPC end mills (Circle Power Cutting)

Ø d A
Ø d 1
SCPP220
l 2
l 1

HB
d 1 Type, d A l 1 l 2 F z
[mm] description [mm] [mm] [mm] [mm] Material
6.0 CPC-SF.UN.0444.0600.OL.Z4.F0010A.HB 6 80 33 0.1 4 W0444060541
8.0 CPC-SF.UN.0444.0800.OL.Z4.F0020A.HB 8 100 40 0.2 4 W0444080541
10.0 CPC-SF.UN.0444.1000.OL.Z4.F0020A.HB 10 105 50 0.2 4 W0444100541
12.0 CPC-SF.UN.0444.1200.OL.Z4.F0030A.HB 12 125 60 0.3 4 W0444120541
16.0 CPC-SF.UN.0444.1600.OL.Z4.F0030A.HB 16 150 80 0.3 4 W0444160541
20.0 CPC-SF.UN.0444.2000.OL.Z4.F0030A.HB 20 160 90 0.3 4 W0444200541

Solid carbide tools / Milling
