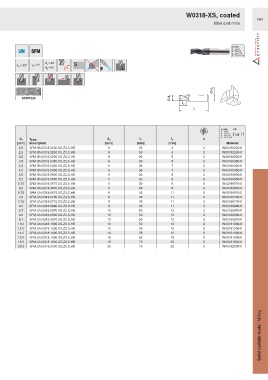

Page 1057 - Ceratizit Catalog

W0318-XS, coated
F60
Mini end mills

Ø d A

SCPP225 Ø d 1
l 2
l 1

HB
d 1 Type, d A l 1 l 2 z
[mm] description [mm] [mm] [mm] Material
2.0 SFM.UN.0318.0200.XS.Z3.S.HB 6 35 4 3 W0318020041
2.5 SFM.UN.0318.0250.XS.Z3.S.HB 6 35 4 3 W0318025041
3.0 SFM.UN.0318.0300.XS.Z3.S.HB 6 36 5 3 W0318030041
3.5 SFM.UN.0318.0350.XS.Z3.S.HB 6 36 5 3 W0318035041
4.0 SFM.UN.0318.0400.XS.Z3.S.HB 6 38 7 3 W0318040041
4.5 SFM.UN.0318.0450.XS.Z3.S.HB 6 38 7 3 W0318045041
5.0 SFM.UN.0318.0500.XS.Z3.S.HB 6 39 8 3 W0318050041
5.5 SFM.UN.0318.0550.XS.Z3.S.HB 6 39 8 3 W0318055041
5.75 SFM.UN.0318.0575.XS.Z3.S.HB 6 39 8 3 W0318057041
6.0 SFM.UN.0318.0600.XS.Z3.S.HB 6 39 8 3 W0318060041
6.75 SFM.UN.0318.0675.XS.Z3.S.HB 8 43 11 3 W0318067041
7.0 SFM.UN.0318.0700.XS.Z3.S.HB 8 43 11 3 W0318070041
7.75 SFM.UN.0318.0775.XS.Z3.S.HB 8 43 11 3 W0318077041
8.0 SFM.UN.0318.0800.XS.Z3.S.HB 8 43 11 3 W0318080041
8.7 SFM.UN.0318.0870.XS.Z3.S.HB 10 50 13 3 W0318087041
9.0 SFM.UN.0318.0900.XS.Z3.S.HB 10 50 13 3 W0318090041
9.7 SFM.UN.0318.0970.XS.Z3.S.HB 10 50 13 3 W0318097041
10.0 SFM.UN.0318.1000.XS.Z3.S.HB 10 50 13 3 W0318100041
12.0 SFM.UN.0318.1200.XS.Z3.S.HB 12 55 15 3 W0318120041
14.0 SFM.UN.0318.1400.XS.Z3.S.HB 14 58 15 3 W0318140041
16.0 SFM.UN.0318.1600.XS.Z3.S.HB 16 62 18 3 W0318160041
18.0 SFM.UN.0318.1800.XS.Z3.S.HB 18 70 20 3 W0318180041
20.0 SFM.UN.0318.2000.XS.Z3.S.HB 20 75 22 3 W0318200041

Solid carbide tools / Milling
