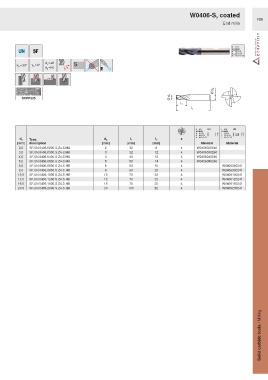

Page 1053 - Ceratizit Catalog

W0406-S, coated
F56
End mills

Ø d A
Ø d 1
SCPP225
l 2
l 1

HA HB
d 1 Type, d A l 1 l 2 z
[mm] description [mm] [mm] [mm] Material Material
2.0 SF.UN.0406.0200.S.Z4.S.HA 2 32 8 4 W0406020240
3.0 SF.UN.0406.0300.S.Z4.S.HA 3 32 12 4 W0406030240
4.0 SF.UN.0406.0400.S.Z4.S.HA 4 40 12 4 W0406040240
5.0 SF.UN.0406.0500.S.Z4.S.HA 5 50 14 4 W0406050240
6.0 SF.UN.0406.0600.S.Z4.S.HB 6 50 16 4 W0406060241
8.0 SF.UN.0406.0800.S.Z4.S.HB 8 60 20 4 W0406080241
10.0 SF.UN.0406.1000.S.Z4.S.HB 10 70 22 4 W0406100241
12.0 SF.UN.0406.1200.S.Z4.S.HB 12 70 22 4 W0406120241
16.0 SF.UN.0406.1600.S.Z4.S.HB 16 75 25 4 W0406160241
20.0 SF.UN.0406.2000.S.Z4.S.HB 20 100 32 4 W0406200241

Solid carbide tools / Milling
