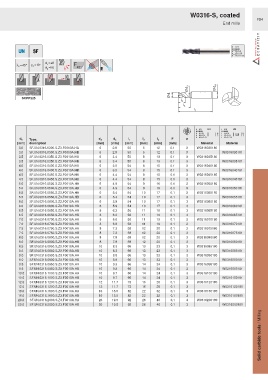

Page 1051 - Ceratizit Catalog

W0316-S, coated
F54
End mills

Ø d 3 Ø d A
Ø d 1
SCPP225
l 2
l 3
l 1

HA HB
d 1 Type, d A d 3 l 1 l 2 l 3 F z
[mm] description [mm] [mm] [mm] [mm] [mm] [mm] Material Material
3.0 SF.UN.0316.0300.S.Z3.F0010A.HA 6 2.9 50 5 12 0.1 3 W0316030180
3.0 SF.UN.0316.0300.S.Z3.F0010A.HB 6 2.9 50 5 12 0.1 3 W0316030181
3.5 SF.UN.0316.0350.S.Z3.F0010A.HA 6 3.4 50 6 13 0.1 3 W0316035180
3.5 SF.UN.0316.0350.S.Z3.F0010A.HB 6 3.4 50 6 13 0.1 3 W0316035181
4.0 SF.UN.0316.0400.S.Z3.F0010A.HA 6 3.9 54 8 15 0.1 3 W0316040180
4.0 SF.UN.0316.0400.S.Z3.F0010A.HB 6 3.9 54 8 15 0.1 3 W0316040181
4.5 SF.UN.0316.0450.S.Z3.F0010A.HA 6 4.4 54 8 15 0.1 3 W0316045180
4.5 SF.UN.0316.0450.S.Z3.F0010A.HB 6 4.4 54 8 15 0.1 3 W0316045181
5.0 SF.UN.0316.0500.S.Z3.F0010A.HA 6 4.9 54 9 16 0.1 3 W0316050180
5.0 SF.UN.0316.0500.S.Z3.F0010A.HB 6 4.9 54 9 16 0.1 3 W0316050181
5.5 SF.UN.0316.0550.S.Z3.F0010A.HA 6 5.4 54 10 17 0.1 3 W0316055180
5.5 SF.UN.0316.0550.S.Z3.F0010A.HB 6 5.4 54 10 17 0.1 3 W0316055181
6.0 SF.UN.0316.0600.S.Z3.F0010A.HA 6 5.9 54 10 17 0.1 3 W0316060180
6.0 SF.UN.0316.0600.S.Z3.F0010A.HB 6 5.9 54 10 17 0.1 3 W0316060181
6.5 SF.UN.0316.0650.S.Z3.F0010A.HA 8 6.3 58 11 19 0.1 3 W0316065180
6.5 SF.UN.0316.0650.S.Z3.F0010A.HB 8 6.3 58 11 19 0.1 3 W0316065181
7.0 SF.UN.0316.0700.S.Z3.F0010A.HA 8 6.8 58 11 19 0.1 3 W0316070180
7.0 SF.UN.0316.0700.S.Z3.F0010A.HB 8 6.8 58 11 19 0.1 3 W0316070181
7.5 SF.UN.0316.0750.S.Z3.F0010A.HA 8 7.3 58 12 20 0.1 3 W0316075180
7.5 SF.UN.0316.0750.S.Z3.F0010A.HB 8 7.3 58 12 20 0.1 3 W0316075181
8.0 SF.UN.0316.0800.S.Z3.F0010A.HA 8 7.8 58 12 20 0.1 3 W0316080180
8.0 SF.UN.0316.0800.S.Z3.F0010A.HB 8 7.8 58 12 20 0.1 3 W0316080181
8.5 SF.UN.0316.0850.S.Z3.F0010A.HA 10 8.3 66 13 23 0.1 3 W0316085180
8.5 SF.UN.0316.0850.S.Z3.F0010A.HB 10 8.3 66 13 23 0.1 3 W0316085181
9.0 SF.UN.0316.0900.S.Z3.F0010A.HA 10 8.8 66 13 23 0.1 3 W0316090180
9.0 SF.UN.0316.0900.S.Z3.F0010A.HB 10 8.8 66 13 23 0.1 3 W0316090181
9.5 SF.UN.0316.0950.S.Z3.F0010A.HA 10 9.3 66 14 24 0.1 3 W0316095180
9.5 SF.UN.0316.0950.S.Z3.F0010A.HB 10 9.3 66 14 24 0.1 3 W0316095181
10.0 SF.UN.0316.1000.S.Z3.F0010A.HA 10 9.7 66 14 24 0.1 3 W0316100180
10.0 SF.UN.0316.1000.S.Z3.F0010A.HB 10 9.7 66 14 24 0.1 3 W0316100181
12.0 SF.UN.0316.1200.S.Z3.F0010A.HA 12 11.7 73 16 26 0.1 3 W0316120180
12.0 SF.UN.0316.1200.S.Z3.F0010A.HB 12 11.7 73 16 26 0.1 3 W0316120181
16.0 SF.UN.0316.1600.S.Z3.F0010A.HA 16 15.5 82 22 32 0.1 3 W0316160180
16.0 SF.UN.0316.1600.S.Z3.F0010A.HB 16 15.5 82 22 32 0.1 3 W0316160181
20.0 SF.UN.0316.2000.S.Z3.F0010A.HA 20 19.5 92 26 40 0.1 3 W0316200180
20.0 SF.UN.0316.2000.S.Z3.F0010A.HB 20 19.5 92 26 40 0.1 3 W0316200181
