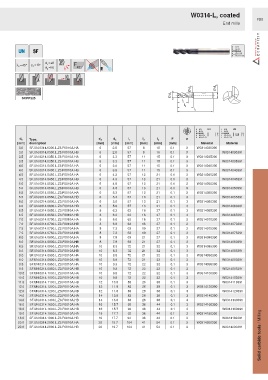

Page 1047 - Ceratizit Catalog

W0314-L, coated
F50
End mills

Ø d 3 Ø d A
Ø d 1
SCPP225
l 2
l 3
l 1

HA HB
d 1 Type, d A d 3 l 1 l 2 l 3 F z
[mm] description [mm] [mm] [mm] [mm] [mm] [mm] Material Material
3.0 SF.UN.0314.0300.L.Z3.F0010A.HA 6 2.8 57 8 15 0.1 3 W0314030390
3.0 SF.UN.0314.0300.L.Z3.F0010A.HB 6 2.8 57 8 15 0.1 3 W0314030391
3.5 SF.UN.0314.0350.L.Z3.F0010A.HA 6 3.3 57 11 15 0.1 3 W0314035390
3.5 SF.UN.0314.0350.L.Z3.F0010A.HB 6 3.3 57 11 15 0.1 3 W0314035391
4.0 SF.UN.0314.0400.L.Z3.F0010A.HA 6 3.8 57 11 15 0.1 3 W0314040390
4.0 SF.UN.0314.0400.L.Z3.F0010A.HB 6 3.8 57 11 15 0.1 3 W0314040391
4.5 SF.UN.0314.0450.L.Z3.F0010A.HA 6 4.3 57 13 21 0.1 3 W0314045390
4.5 SF.UN.0314.0450.L.Z3.F0010A.HB 6 4.3 57 13 21 0.1 3 W0314045391
5.0 SF.UN.0314.0500.L.Z3.F0010A.HA 6 4.8 57 13 21 0.1 3 W0314050390
5.0 SF.UN.0314.0500.L.Z3.F0010A.HB 6 4.8 57 13 21 0.1 3 W0314050391
5.5 SF.UN.0314.0550.L.Z3.F0010A.HA 6 5.3 57 13 21 0.1 3 W0314055390
5.5 SF.UN.0314.0550.L.Z3.F0010A.HB 6 5.3 57 13 21 0.1 3 W0314055391
6.0 SF.UN.0314.0600.L.Z3.F0010A.HA 6 5.8 57 13 21 0.1 3 W0314060390
6.0 SF.UN.0314.0600.L.Z3.F0010A.HB 6 5.8 57 13 21 0.1 3 W0314060391
6.5 SF.UN.0314.0650.L.Z3.F0010A.HA 8 6.3 63 16 27 0.1 3 W0314065390
6.5 SF.UN.0314.0650.L.Z3.F0010A.HB 8 6.3 63 16 27 0.1 3 W0314065391
7.0 SF.UN.0314.0700.L.Z3.F0010A.HA 8 6.8 63 16 27 0.1 3 W0314070390
7.0 SF.UN.0314.0700.L.Z3.F0010A.HB 8 6.8 63 16 27 0.1 3 W0314070391
7.5 SF.UN.0314.0750.L.Z3.F0010A.HA 8 7.3 63 19 27 0.1 3 W0314075390
7.5 SF.UN.0314.0750.L.Z3.F0010A.HB 8 7.3 63 19 27 0.1 3 W0314075391
8.0 SF.UN.0314.0800.L.Z3.F0010A.HA 8 7.8 63 21 27 0.1 3 W0314080390
8.0 SF.UN.0314.0800.L.Z3.F0010A.HB 8 7.8 63 21 27 0.1 3 W0314080391
8.5 SF.UN.0314.0850.L.Z3.F0010A.HA 10 8.3 72 21 32 0.1 3 W0314085390
8.5 SF.UN.0314.0850.L.Z3.F0010A.HB 10 8.3 72 21 32 0.1 3 W0314085391
9.0 SF.UN.0314.0900.L.Z3.F0010A.HA 10 8.8 72 21 32 0.1 3 W0314090390
9.0 SF.UN.0314.0900.L.Z3.F0010A.HB 10 8.8 72 21 32 0.1 3 W0314090391
9.5 SF.UN.0314.0950.L.Z3.F0010A.HA 10 9.3 72 22 32 0.1 3 W0314095390
9.5 SF.UN.0314.0950.L.Z3.F0010A.HB 10 9.3 72 22 32 0.1 3 W0314095391
10.0 SF.UN.0314.1000.L.Z3.F0010A.HA 10 9.8 72 22 32 0.1 3 W0314100390
10.0 SF.UN.0314.1000.L.Z3.F0010A.HB 10 9.8 72 22 32 0.1 3 W0314100391
11.0 SF.UN.0314.1100.L.Z3.F0010A.HB 12 10.8 83 26 38 0.1 3 W0314110391
12.0 SF.UN.0314.1200.L.Z3.F0010A.HA 12 11.8 83 26 38 0.1 3 W0314120390
12.0 SF.UN.0314.1200.L.Z3.F0010A.HB 12 11.8 83 26 38 0.1 3 W0314120391
14.0 SF.UN.0314.1400.L.Z3.F0010A.HA 14 13.8 83 26 38 0.1 3 W0314140390
14.0 SF.UN.0314.1400.L.Z3.F0010A.HB 14 13.8 83 26 38 0.1 3 W0314140391
16.0 SF.UN.0314.1600.L.Z3.F0010A.HA 16 15.7 92 36 44 0.1 3 W0314160390
16.0 SF.UN.0314.1600.L.Z3.F0010A.HB 16 15.7 92 36 44 0.1 3 W0314160391
Solid carbide tools / Milling
18.0 SF.UN.0314.1800.L.Z3.F0010A.HA 18 17.7 92 36 44 0.1 3 W0314180390
18.0 SF.UN.0314.1800.L.Z3.F0010A.HB 18 17.7 92 36 44 0.1 3 W0314180391
20.0 SF.UN.0314.2000.L.Z3.F0010A.HA 20 19.7 104 41 54 0.1 3 W0314200390
20.0 SF.UN.0314.2000.L.Z3.F0010A.HB 20 19.7 104 41 54 0.1 3 W0314200391
