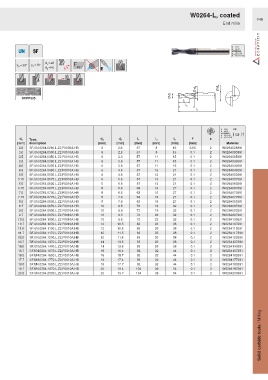

Page 1043 - Ceratizit Catalog

W0264-L, coated
F46
End mills

Ø d 3 Ø d A
Ø d 1
SCPP225
l 2
l 3
l 1

HB
d 1 Type, d A d 3 l 1 l 2 l 3 F z
[mm] description [mm] [mm] [mm] [mm] [mm] [mm] Material
2.8 SF.UN.0264.0280.L.Z2.F0005A.HB 6 2.6 57 8 15 0.05 2 W0264028391
3.0 SF.UN.0264.0300.L.Z2.F0010A.HB 6 2.8 57 8 15 0.1 2 W0264030391
3.5 SF.UN.0264.0350.L.Z2.F0010A.HB 6 3.3 57 11 15 0.1 2 W0264035391
3.8 SF.UN.0264.0380.L.Z2.F0010A.HB 6 3.6 57 11 15 0.1 2 W0264038391
4.0 SF.UN.0264.0400.L.Z2.F0010A.HB 6 3.8 57 11 15 0.1 2 W0264040391
4.8 SF.UN.0264.0480.L.Z2.F0010A.HB 6 4.6 57 13 21 0.1 2 W0264048391
5.0 SF.UN.0264.0500.L.Z2.F0010A.HB 6 4.8 57 13 21 0.1 2 W0264050391
5.75 SF.UN.0264.0575.L.Z2.F0010A.HB 6 5.6 57 13 21 0.1 2 W0264057591
6.0 SF.UN.0264.0600.L.Z2.F0010A.HB 6 5.8 57 13 21 0.1 2 W0264060391
6.75 SF.UN.0264.0675.L.Z2.F0010A.HB 8 6.6 63 16 27 0.1 2 W0264067591
7.0 SF.UN.0264.0700.L.Z2.F0010A.HB 8 6.8 63 16 27 0.1 2 W0264070391
7.75 SF.UN.0264.0775.L.Z2.F0010A.HB 8 7.6 63 19 27 0.1 2 W0264077591
8.0 SF.UN.0264.0800.L.Z2.F0010A.HB 8 7.8 63 19 27 0.1 2 W0264080391
8.7 SF.UN.0264.0870.L.Z2.F0010A.HB 10 8.5 72 19 32 0.1 2 W0264087391
9.0 SF.UN.0264.0900.L.Z2.F0010A.HB 10 8.8 72 19 32 0.1 2 W0264090391
9.7 SF.UN.0264.0970.L.Z2.F0010A.HB 10 9.5 72 22 32 0.1 2 W0264097391
10.0 SF.UN.0264.1000.L.Z2.F0010A.HB 10 9.8 72 22 32 0.1 2 W0264100391
10.7 SF.UN.0264.1070.L.Z2.F0010A.HB 12 10.5 83 26 38 0.1 2 W0264107391
11.0 SF.UN.0264.1100.L.Z2.F0010A.HB 12 10.8 83 26 38 0.1 2 W0264110391
11.7 SF.UN.0264.1170.L.Z2.F0010A.HB 12 11.5 83 26 38 0.1 2 W0264117391
12.0 SF.UN.0264.1200.L.Z2.F0010A.HB 12 11.8 83 26 38 0.1 2 W0264120391
13.7 SF.UN.0264.1370.L.Z2.F0010A.HB 14 13.5 83 26 38 0.1 2 W0264137391
14.0 SF.UN.0264.1400.L.Z2.F0010A.HB 14 13.8 83 26 38 0.1 2 W0264140391
15.7 SF.UN.0264.1570.L.Z2.F0010A.HB 16 15.4 92 32 44 0.1 2 W0264157391
16.0 SF.UN.0264.1600.L.Z2.F0010A.HB 16 15.7 92 32 44 0.1 2 W0264160391
17.7 SF.UN.0264.1770.L.Z2.F0010A.HB 18 17.4 92 32 44 0.1 2 W0264177391
18.0 SF.UN.0264.1800.L.Z2.F0010A.HB 18 17.7 92 32 44 0.1 2 W0264180391
19.7 SF.UN.0264.1970.L.Z2.F0010A.HB 20 19.4 104 38 54 0.1 2 W0264197391
20.0 SF.UN.0264.2000.L.Z2.F0010A.HB 20 19.7 104 38 54 0.1 2 W0264200391

Solid carbide tools / Milling
