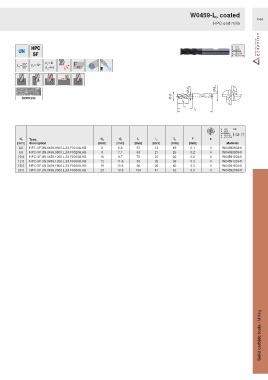

Page 1041 - Ceratizit Catalog

W0459-L, coated
F44
HPC end mills

Ø d 3 Ø d A
Ø d 1
SCPP240
l 2
l 3
l 1

HB
d 1 Type, d A d 3 l 1 l 2 l 3 F z
[mm] description [mm] [mm] [mm] [mm] [mm] [mm] Material
6.0 HPC-SF.UN.0459.0600.L.Z4.F0010A.HB 6 5.8 57 13 19 0.1 4 W0459060341
8.0 HPC-SF.UN.0459.0800.L.Z4.F0020A.HB 8 7.7 63 21 25 0.2 4 W0459080341
10.0 HPC-SF.UN.0459.1000.L.Z4.F0020A.HB 10 9.7 72 22 30 0.2 4 W0459100341
12.0 HPC-SF.UN.0459.1200.L.Z4.F0030A.HB 12 11.6 83 26 36 0.3 4 W0459120341
16.0 HPC-SF.UN.0459.1600.L.Z4.F0030A.HB 16 15.5 92 36 42 0.3 4 W0459160341
20.0 HPC-SF.UN.0459.2000.L.Z4.F0030A.HB 20 19.5 104 41 52 0.3 4 W0459200341

Solid carbide tools / Milling
